Ecotrapod: A Sustainable Innovation in Wave Dissipation
An innovative approach to coastal protection has been developed by rethinking the materials used in wave-dissipating blocks, designed by Chia-Ying Chiang and Shao-Yu Lin, seniors at Taiwan Tech. Their project, titled “Ecotrapod: A New Solution to Wave Dissipation,” recently earned dual honors at the Golden Pin Design Award, including “Best Design of the Year” and the “Special Award for Circular Design.” Typically constructed using conventional concrete, these structures are now being made with a sustainable material blend that includes oyster shells and cement slurry, reducing their carbon footprint and offering potential environmental benefits.
Material Composition and Sustainability
The key innovation lies in the substitution of a significant portion of cement with oyster shells, a by-product of the seafood industry. Oyster shells are composed primarily of calcium carbonate, a material that naturally absorbs CO2. By incorporating these shells into the cement mixture, the carbon emissions associated with traditional concrete production are significantly reduced. Additionally, the use of this waste material prevents it from ending up in landfills, promoting circularity and reducing waste streams.
C-slurry, the other primary component, binds the oyster shells to create a sturdy and durable material capable of withstanding the harsh marine environment. C-slurry is an industrial circular material that is made from the industrial waste, based on the concepts of alkaline activated concrete. This combination not only reduces the reliance on high-emission materials but also contributes to a more sustainable lifecycle for construction materials.
Design and Performance

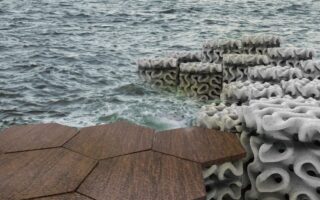

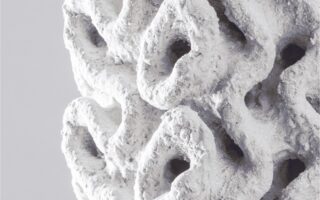

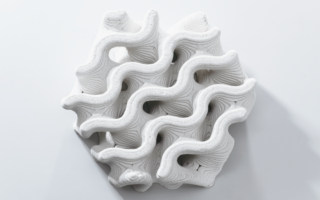

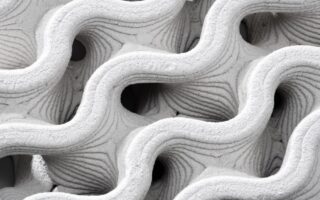

The blocks are engineered with an interlocking, honeycomb-like design that enhances their stability and effectiveness in dissipating wave energy. Inspired by biomimetic principles, the porous structure minimizes material usage while maximizing strength. This design mitigates coastal erosion by breaking waves more efficiently than conventional flat or angular concrete blocks. Furthermore, the porous structure encourages marine biodiversity by providing habitats for aquatic organisms, such as mollusks and seaweed, thus enhancing the ecological value of coastal infrastructure.
Applications for Landscape and Urban Design
For landscape architects and urban designers, these wave-dissipating blocks represent an opportunity to integrate sustainable and visually appealing elements into coastal and waterfront projects. The natural texture and biophilic properties of the blocks can be leveraged to create multifunctional coastal defenses that also serve as ecological sanctuaries. Their adaptability allows for use in a variety of environments, from urban waterfronts to natural reserves, aligning with sustainable development goals.
Broader Implications for Sustainable Materials
This project, developed by Chia-Ying Chiang and Shao-Yu Lin, exemplifies the potential of biobased and recycled materials in large-scale infrastructure. By repurposing oyster shells and incorporating 3D printing technology, the design highlights the value of transforming industry by-products into functional, high-performance materials. This approach aligns with principles of circular economy and offers a template for further innovation in the construction industry. The project also aims to achieve a fully recyclable lifecycle, with the potential for the blocks to be crushed and remade into new materials after their use.
Source: Yanko Design, International Taiwan University of Science and Technology
Photos via Architecture Master Prize
