Revery Architecture has designed the new PNE Amphitheatre / Freedom Mobile Arch in Vancouver, Canada. This open-air venue will welcome up to 10,000 visitors and features a mass timber roof that is expected to become the largest free-span structure of its kind. The project offers valuable examples for architects, landscape designers, and urban planners who focus on sustainable materials and inclusive public spaces.

Innovative Use of Timber

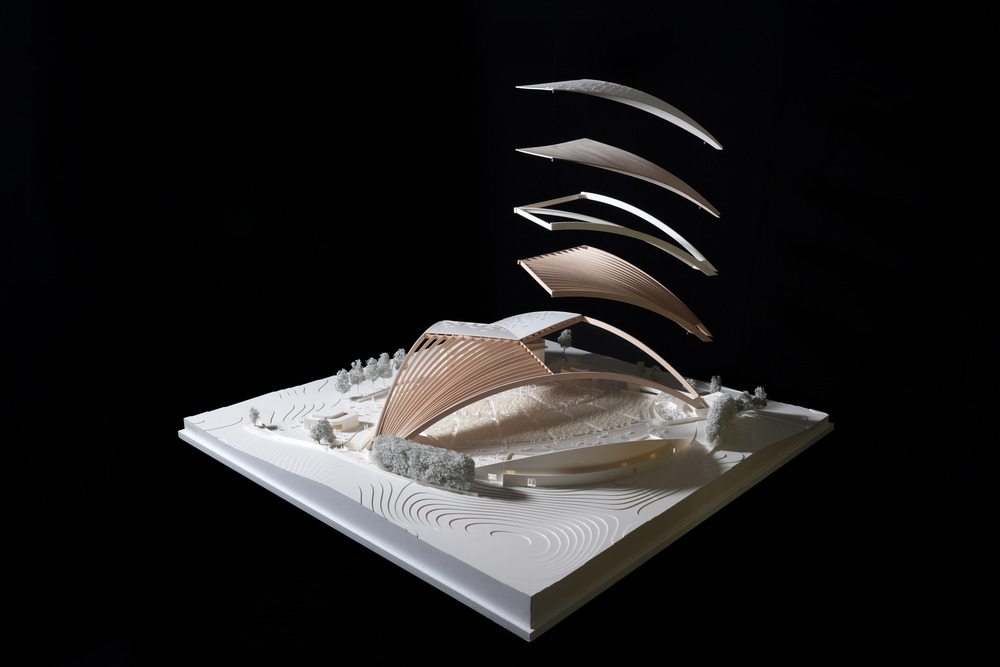

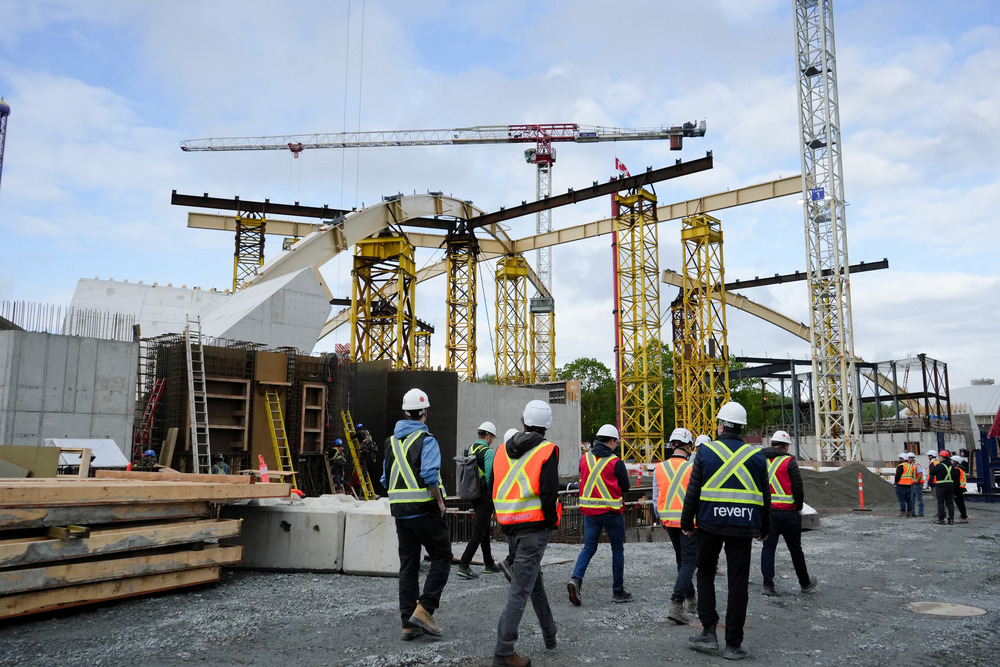

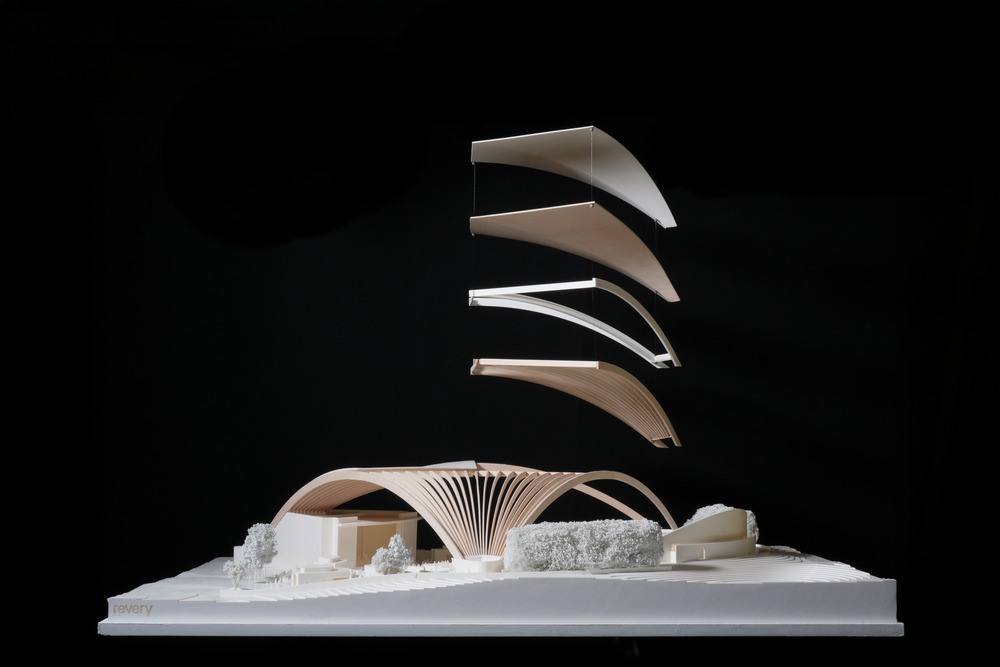

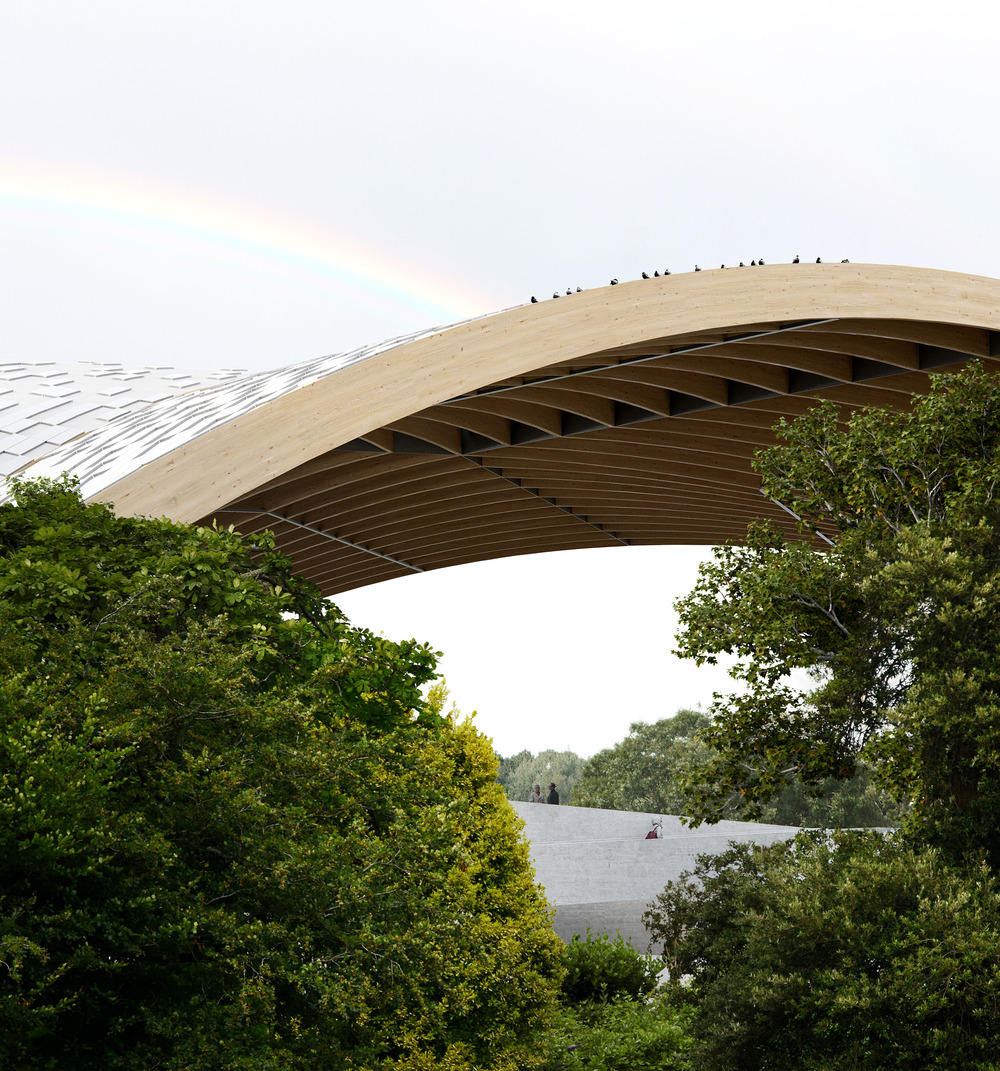

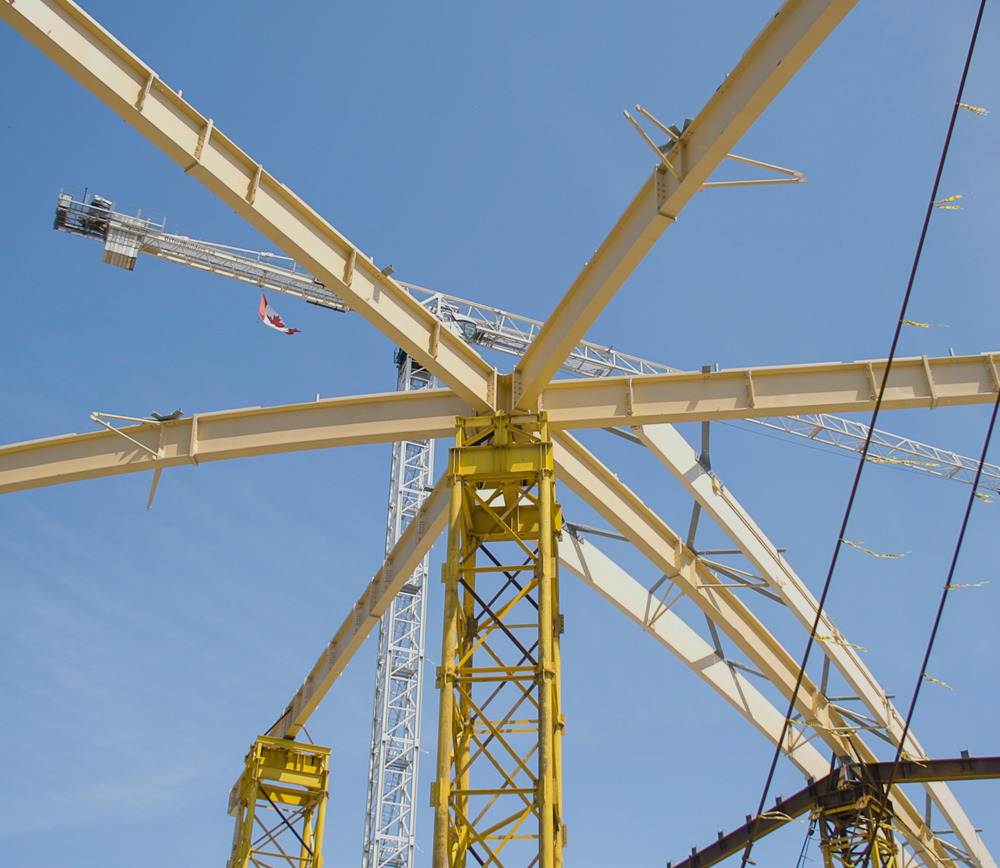

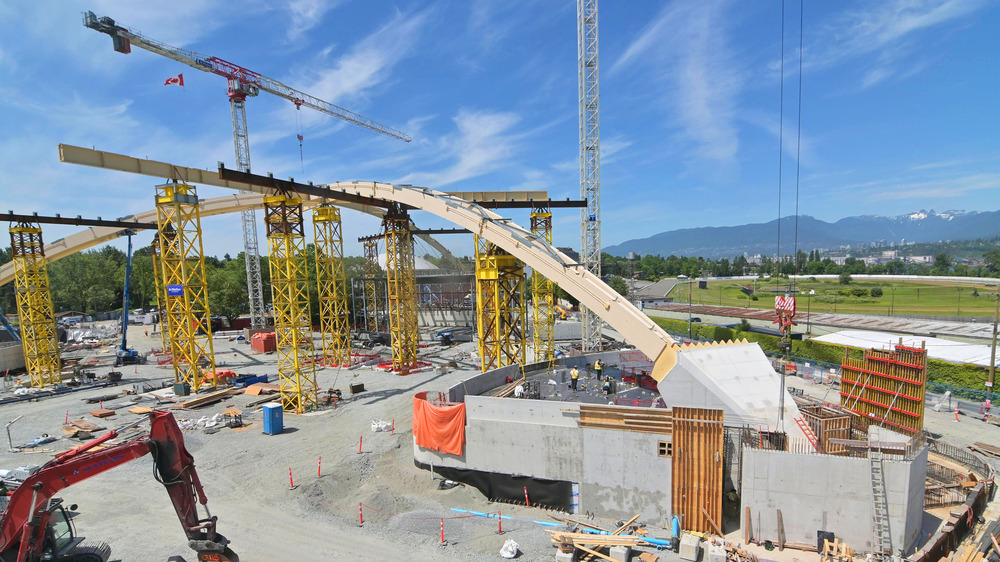

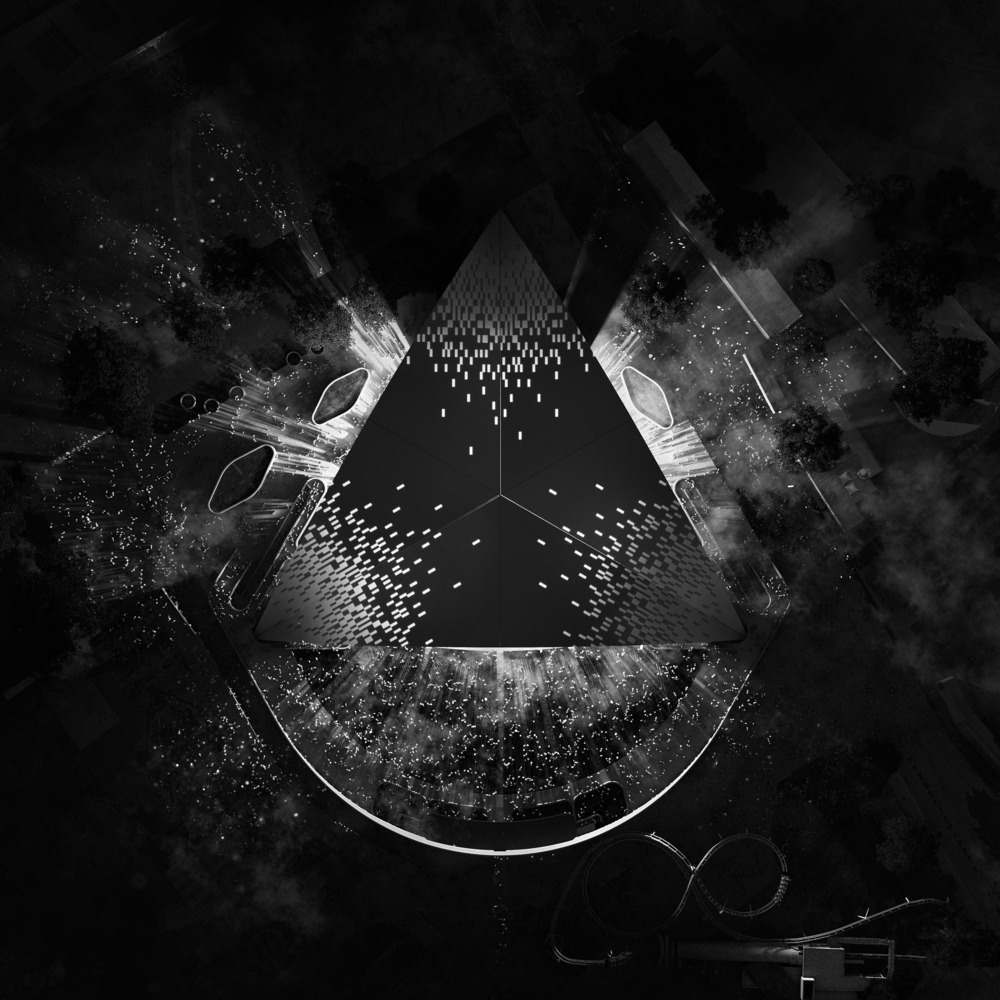

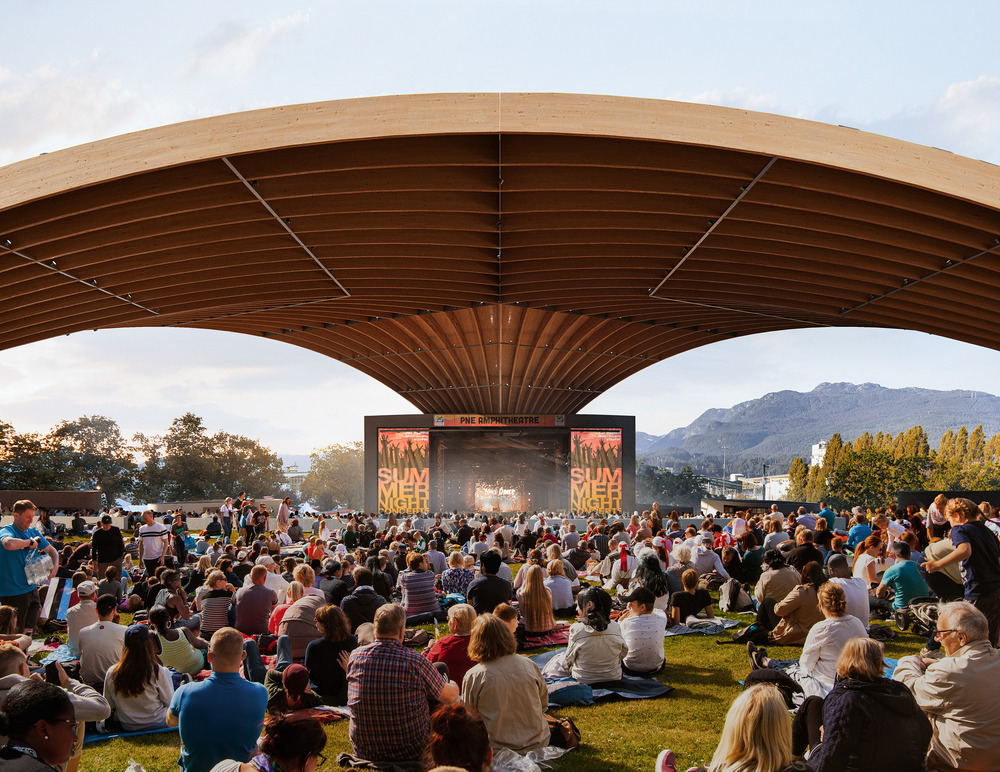

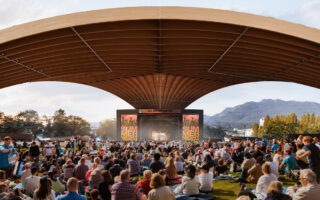

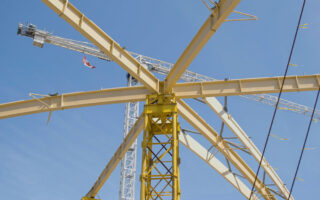

The roof is the standout element of the design. It uses more than 2,000 cubic metres of mass timber, including Douglas Fir glulam arches and a Spruce-Pine-Fir CLT deck. Arranged in a starburst pattern, six barrel vaults intersect at angles to create a striking and functional structure. Spanning 105 metres and reaching 25 metres in height, the roof provides shelter and improves acoustics.

This choice of materials supports both structural performance and environmental goals. Because the timber is sourced regionally, transport emissions are reduced. In addition, the design achieves a 40% lower embodied carbon compared to conventional materials. Over time, the timber will also sequester carbon.

Focus on Sustainability and Accessibility

The project is targeting multiple certifications, such as LEED Gold, Zero Carbon Building, and Salmon-Safe. It will run fully on clean hydroelectric energy. Moreover, a rainwater system is integrated into the roof and foundations. This system will collect, filter, and reuse rainwater to irrigate the site’s green areas. As a result, it helps protect Vancouver’s urban water system, which is important given the city’s high rainfall.

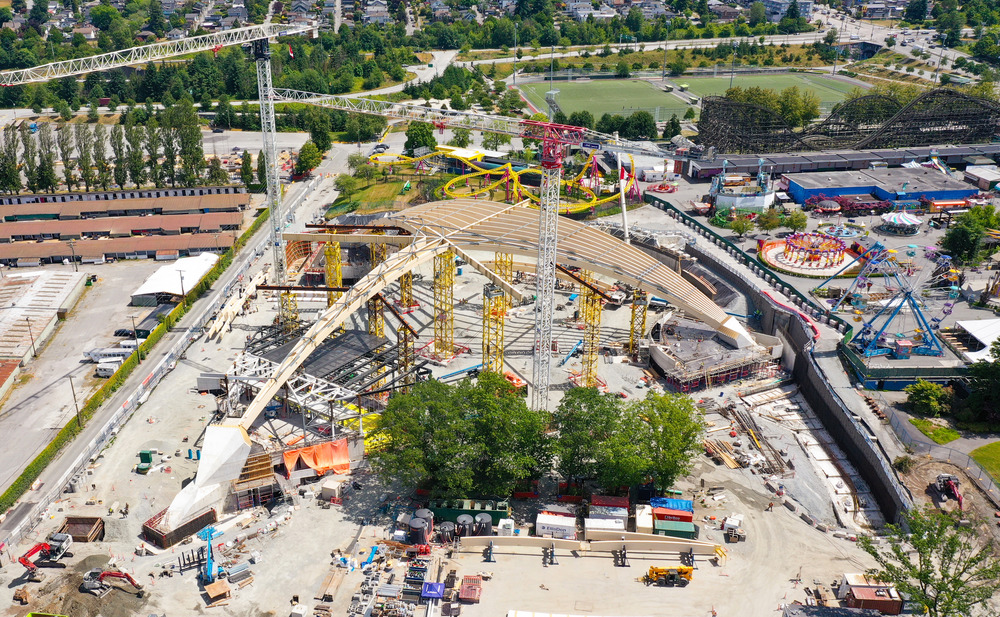

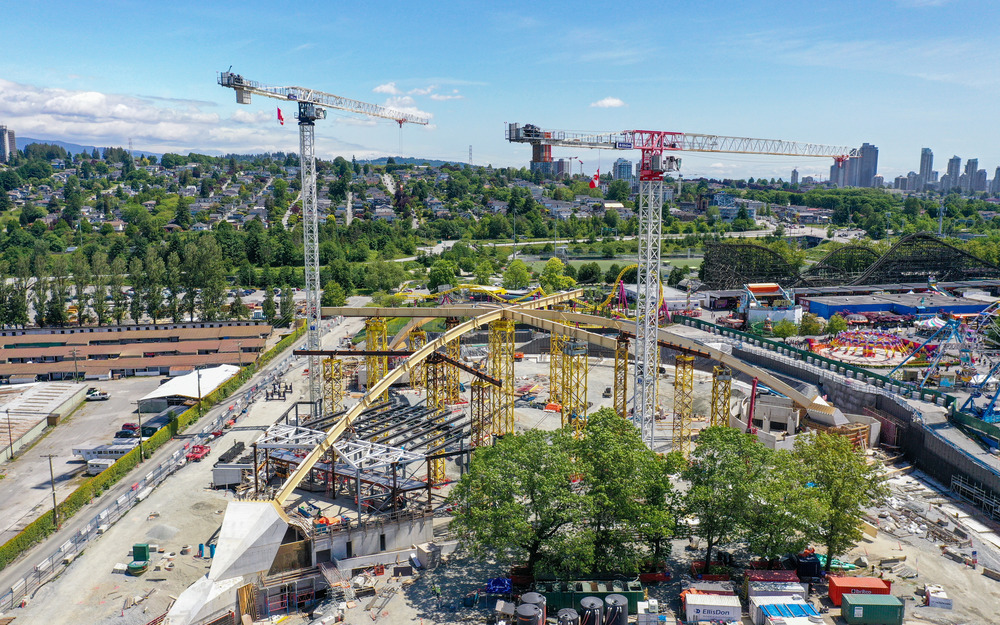

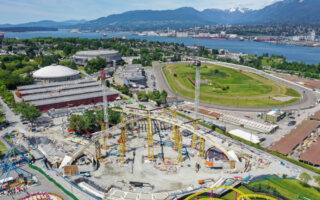

The location in Hastings Park, close to both homes and businesses, brings both opportunities and challenges. To reduce sound impact on nearby neighbourhoods, Revery Architecture partnered with acoustic experts from Stages Consultants. Their work helps balance sound quality for visitors with respect for the local community.

A Flexible and Inclusive Event Space

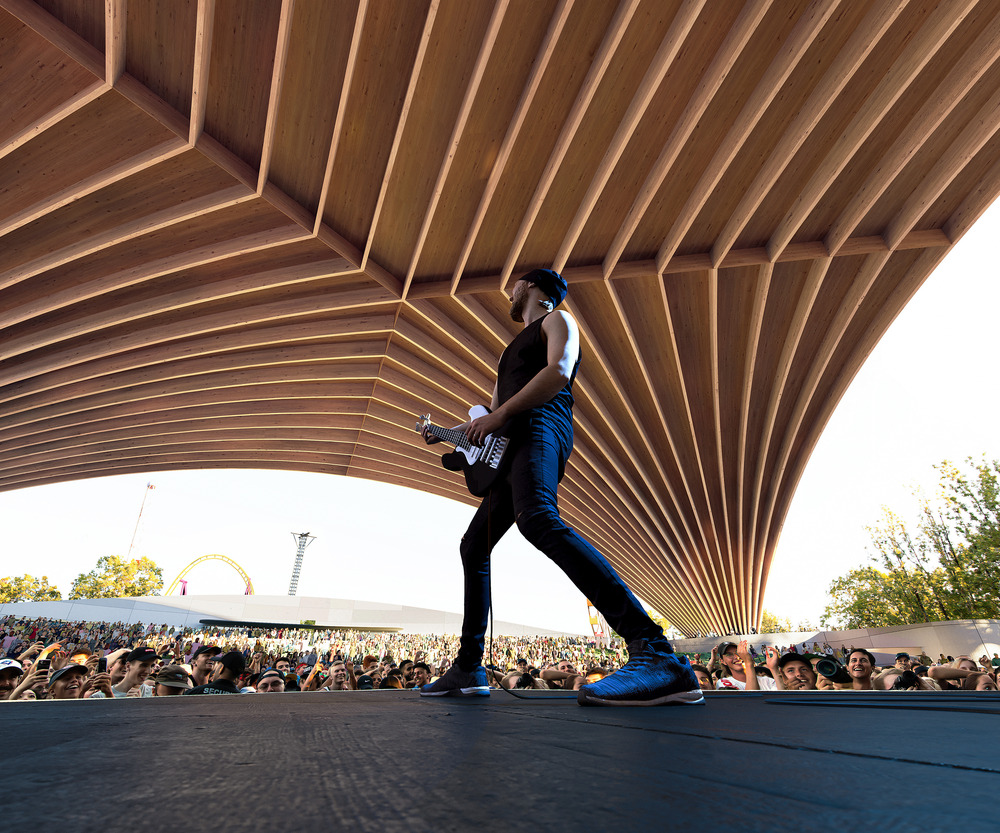

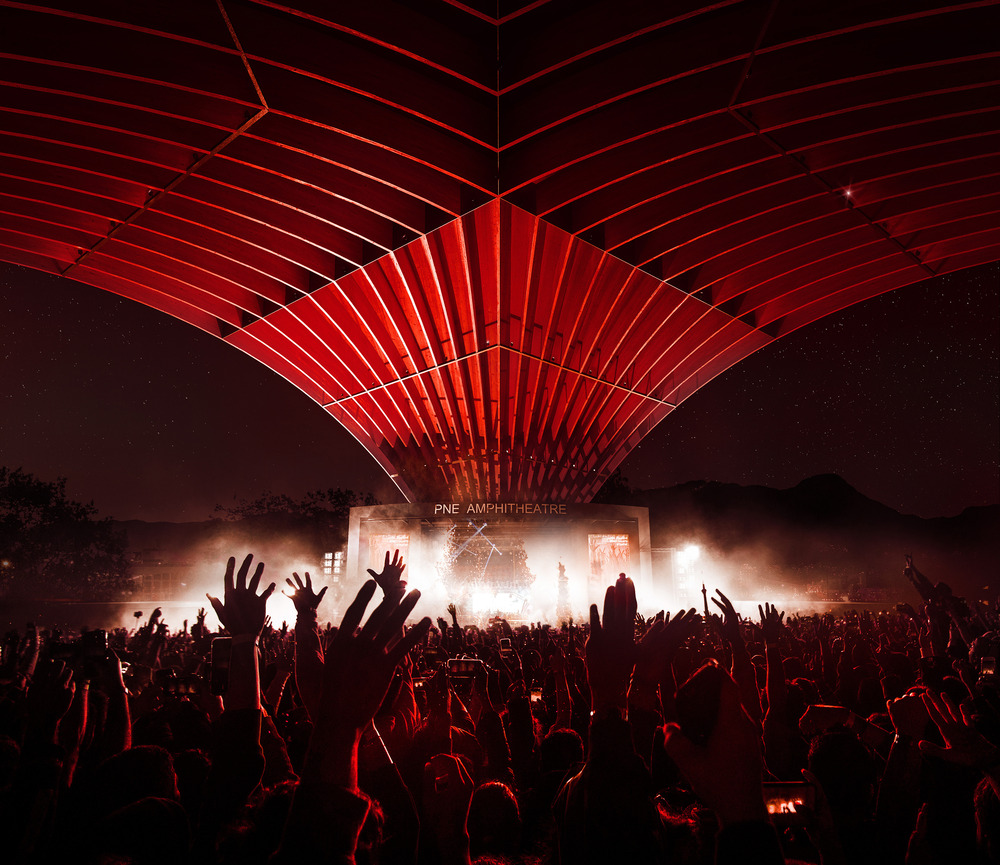

The venue includes a permanent stage, a three-storey support building, and areas for food and merchandise. Seating can be adapted to different events, offering removable chairs, lawn space, and VIP sections. In addition, wide ramps on both sides provide easy access for everyone. The design is aiming for Rick Hansen Foundation Gold certification for accessibility.

The amphitheatre will host events such as the 2026 FIFA Fan Festival. However, it is also designed for local cultural, non-profit, and touring performances. With its innovative use of timber and commitment to sustainability, the project serves as a model for future event spaces.
