Nike developed a specialised performance kit for middle-distance runner Faith Kipyegon as she prepares to attempt to break the four-minute mile barrier. The Breaking4 collection showcases advanced material research, aerodynamic optimisation and manufacturing innovation. While designed for one athlete’s historic attempt, the technologies also have potential for wider applications in high-performance textiles, sportswear development, additive manufacturing and material science.

An Integrated System of Performance Materials

Nike’s Breaking4 kit includes several interconnected components: a bodysuit, sports bra, customised racing spikes, arm and leg sleeves, and a headband. Each element was engineered to function together. By combining small material improvements, the kit reduces aerodynamic drag, controls thermal load and supports efficient movement.

The team took a holistic approach. Rather than relying on one innovation, designers and researchers coordinated multiple developments to address the demands of high-speed middle-distance running. Even minor material optimisations can offer measurable benefits at this level.

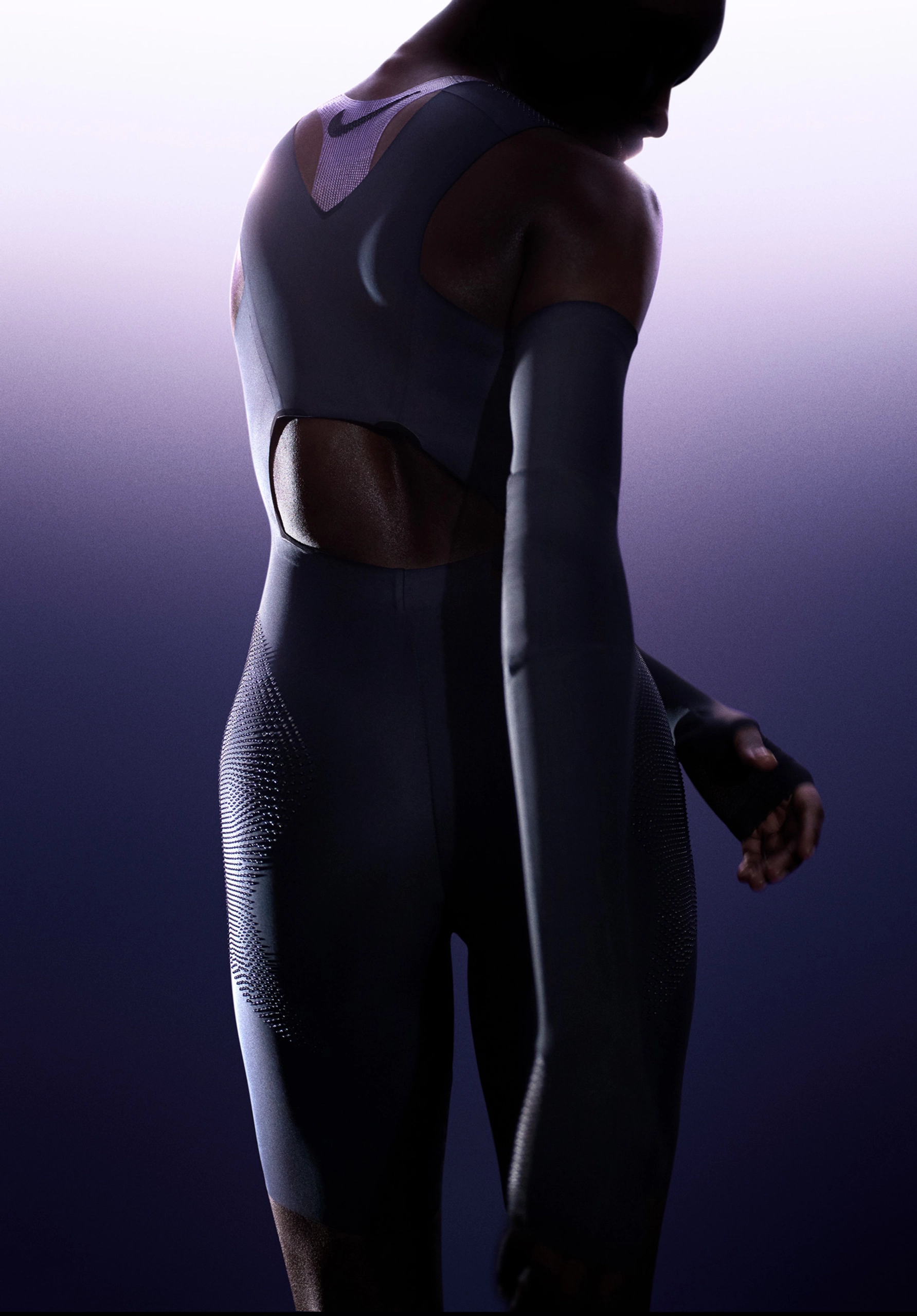

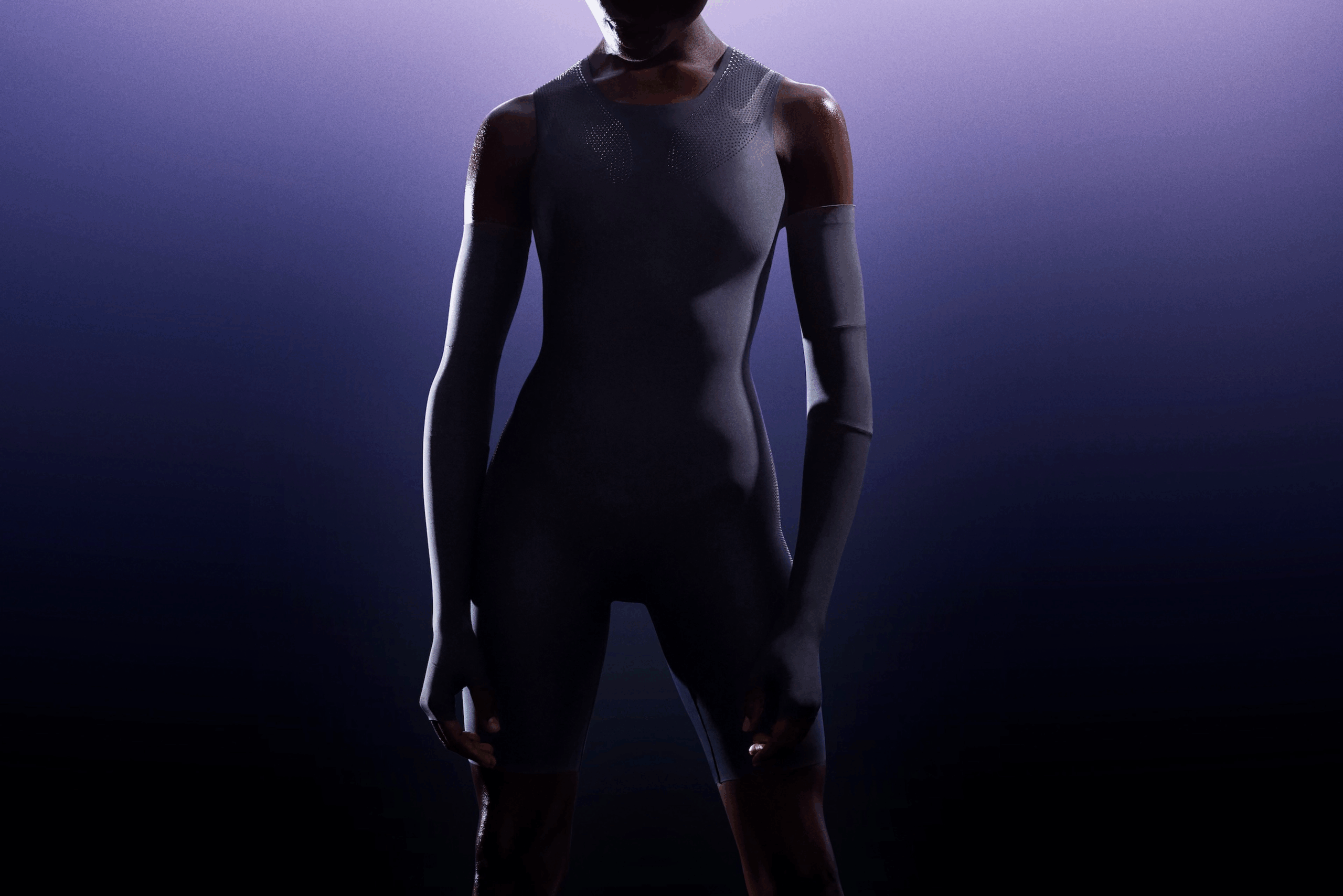

Aerodynamic Surface Design in the Nike Fly Suit

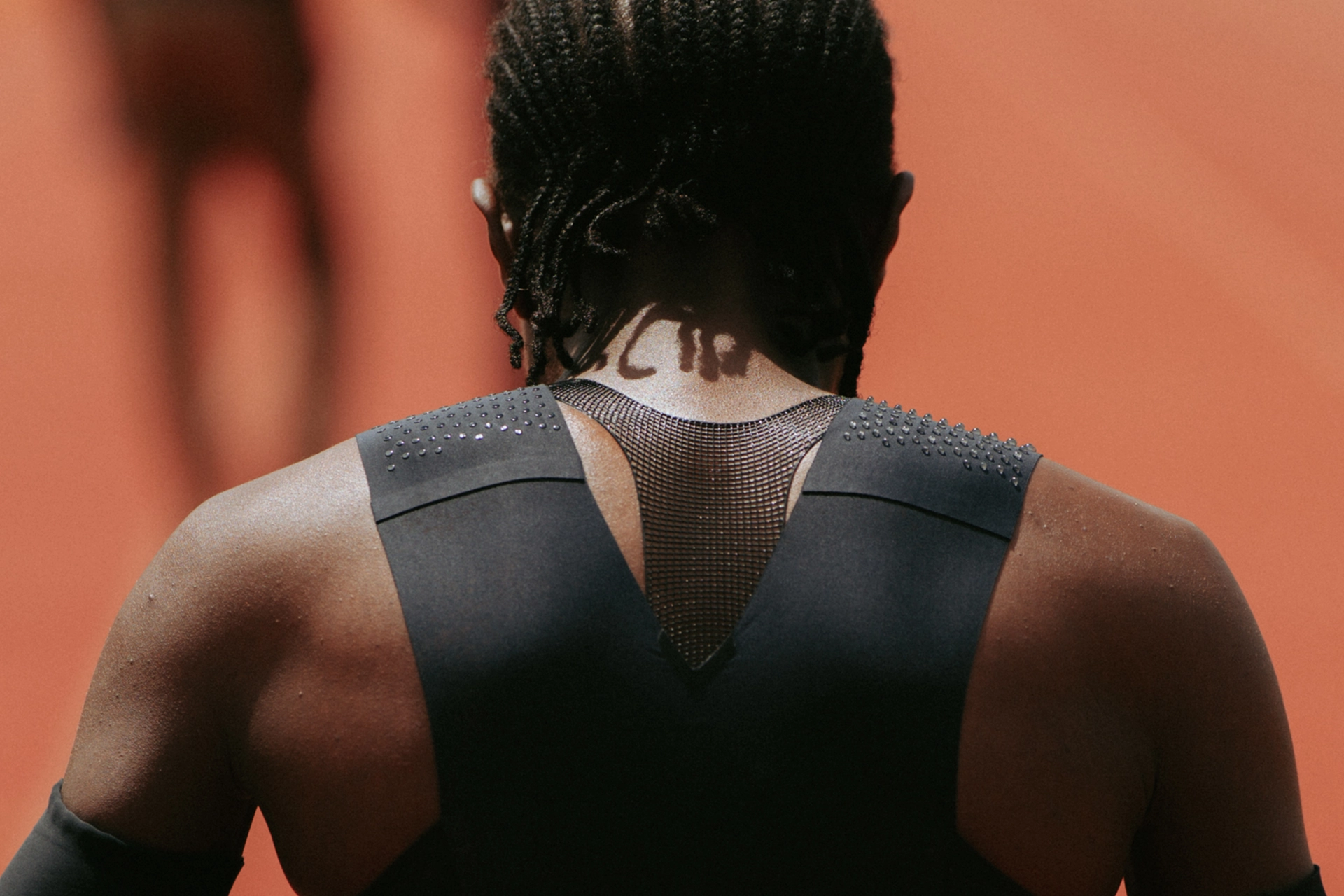

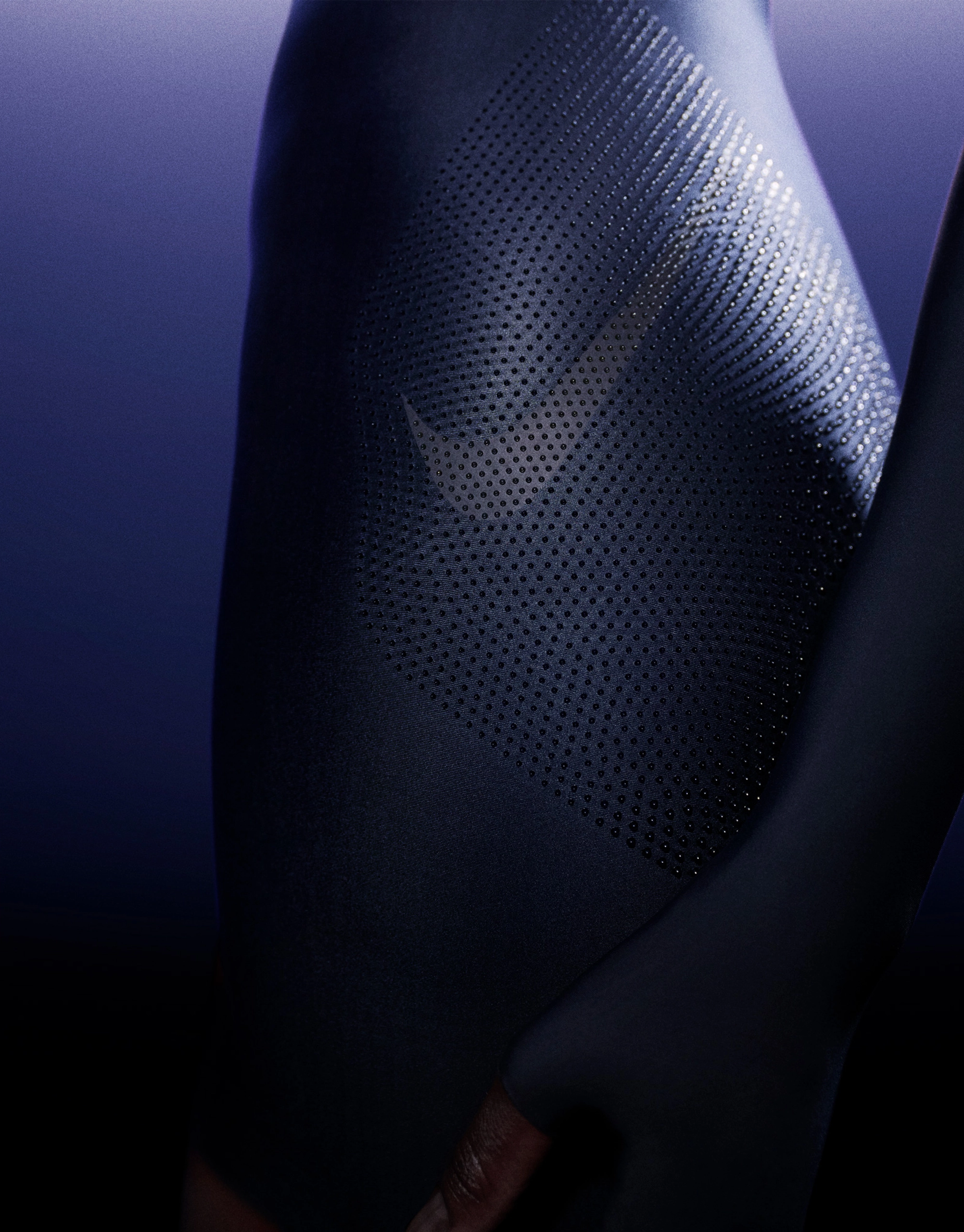

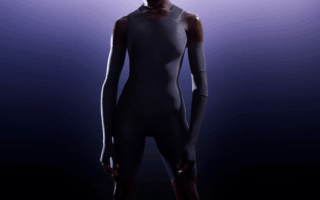

The Nike Fly Suit sits at the centre of the system. This one-piece suit, made from a stretchable and lightweight black textile, aims to reduce air resistance. Clusters of tiny nodes appear at key points such as the neckline, hips and calves. These half-spherical structures, some smaller than a pencil tip, act as aerodynamic tools. They split the air and manage turbulent eddies behind the runner, keeping airflow smooth across the body.

The team fine-tuned the node placement and size using digital wind simulations, wind tunnel testing and on-track trials. Designers tailored the distribution of materials as well. Lightweight fabrics cover the sleeves and headband, while denser fabrics stabilise airflow closer to the core of the body.

3D Printed Thermoplastic in the Nike FlyWeb Bra

Beneath the suit, Nike introduced the FlyWeb Bra, using additive manufacturing for a precision fit. The bra consists of thermoplastic polyurethane (TPU), printed as a single seamless piece. This method allows tight control over fit and material density, offering targeted support while limiting heat buildup — a common problem with traditional sports bras during intense activity.

The open lattice structure improves breathability and moisture management, while maintaining softness and flexibility. Nike reports this as the company’s first use of 3D printing in performance apparel, though the technology has seen extensive use in their footwear development. The approach demonstrates how computational design and advanced polymers increasingly shape modern wearable technology.

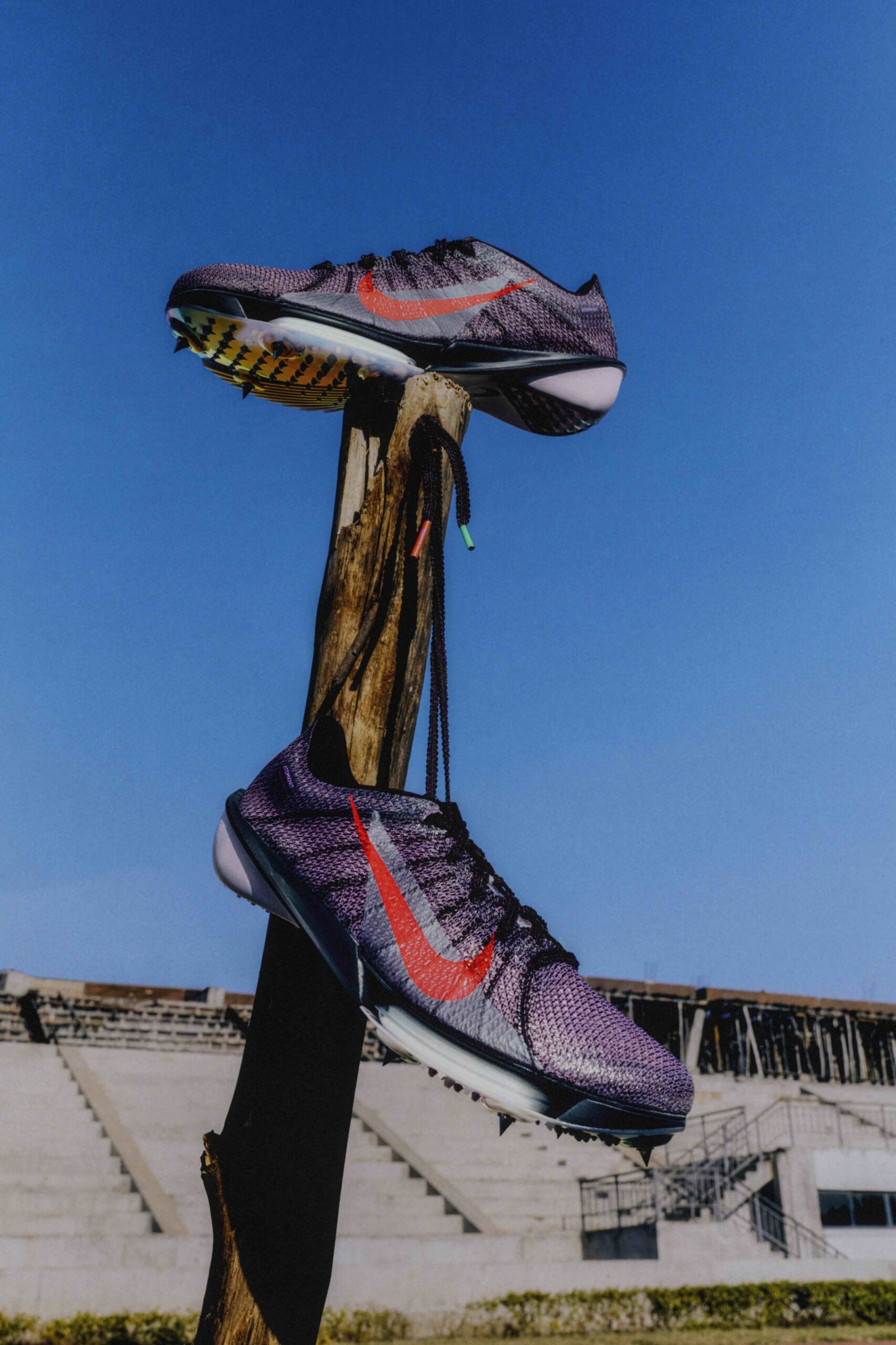

Customised Footwear: The Victory Elite FK Spike

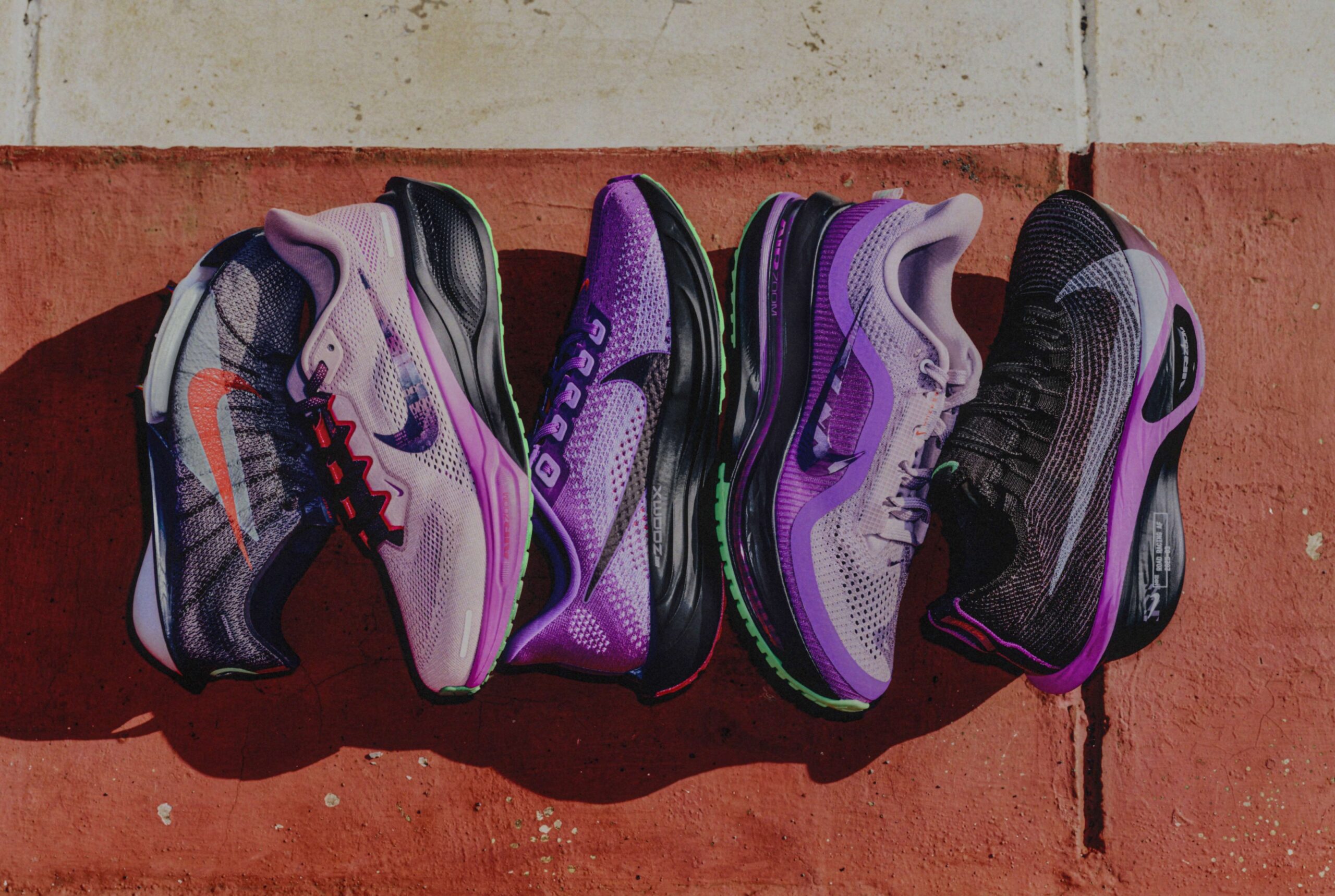

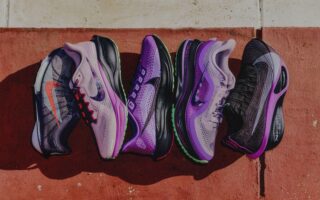

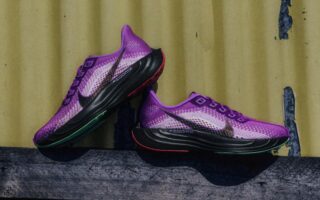

Nike also redesigned Kipyegon’s racing spikes for the Breaking4 attempt. The Victory Elite FK model combines several material innovations to enhance energy return, traction and weight reduction.

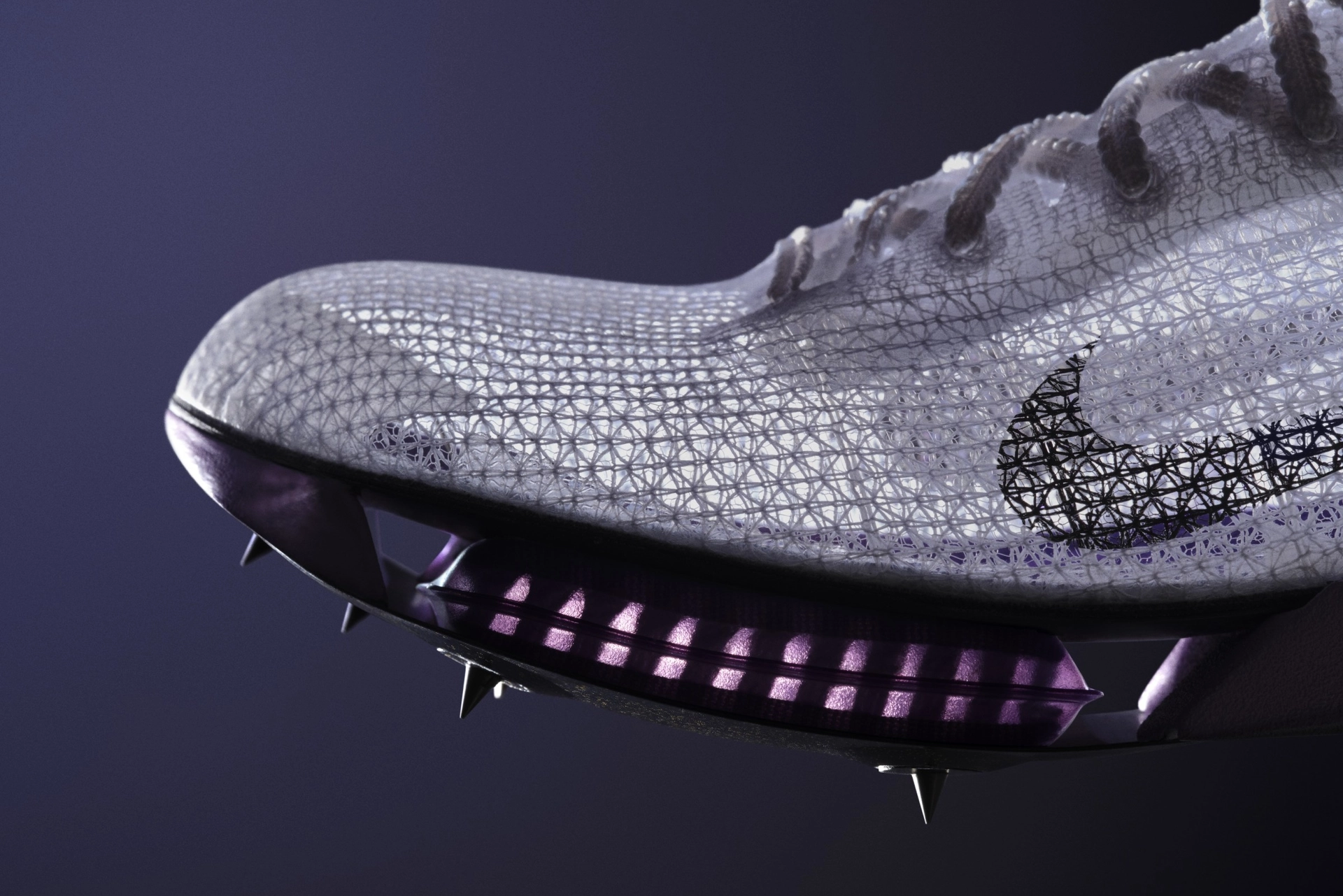

The sole contains a modified air-filled unit to improve propulsion. Carbon fibre layers add stiffness and boost energy transfer. For the outsole, titanium spike pins replace heavier steel or aluminium, offering strength without extra weight. The upper uses Flyknit fabric, which cuts the material weight by about 60 percent while maintaining support at high speeds.

Designers adjusted every part of the shoe based on Kipyegon’s feedback, ensuring the fit matches her stride and biomechanics precisely.

Material Innovation at the Intersection of Performance and Design

While the Breaking4 kit serves a very specific purpose, its development process shows how future material innovations might evolve. The combination of aerodynamically active surfaces, 3D printed TPU structures, additive manufacturing and digital simulation points to growing sophistication in materials engineering. These technologies apply not only to sportswear but also to fields like medical wearables, product design and industrial textiles.

Although sustainability was not the main focus, Nike continues to explore the use of recycled and biobased materials in its broader product lines. This raises possibilities for adapting these technologies in more environmentally responsible ways.

Nike’s Breaking4 project highlights how advanced material development, computational design and precision manufacturing can expand performance boundaries. The methods behind the kit offer valuable insights for professionals working in sportswear design, textile development, additive manufacturing and material science. The integration of aerodynamic engineering, thermoplastic 3D printing and customised design reflects the rapid evolution of high-performance wearable technologies.
