Origami-Inspired 3D-Printed Ceramics Improve Flexibility and Durability

Researchers at the University of Houston have developed a new type of ceramic structure that can bend without breaking. The development is aimed at applications that require lightweight yet durable materials, including product design, automotive components, aerospace engineering, and medical prosthetics.

Combining Ceramics with Origami Geometry
Ceramics are lightweight, durable, and biocompatible, but are also typically brittle, leading to sudden failure under stress. To address this limitation, a research team led by Assistant Professor Maksud Rahman and postdoctoral fellow Md Shajedul Hoque Thakur applied design principles from origami.

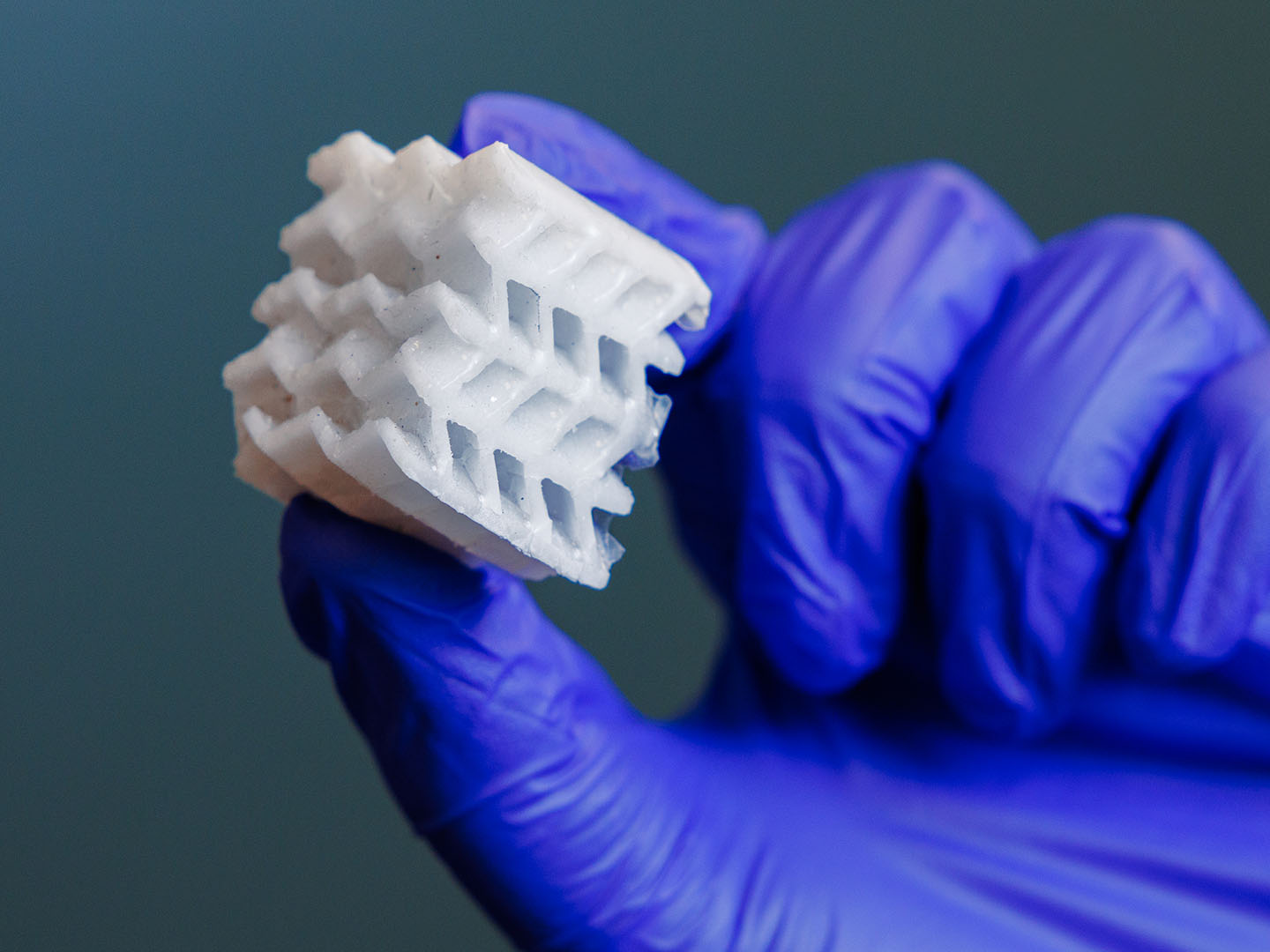

Using 3D printing techniques, the team produced ceramic structures based on the Miura-ori folding pattern, a method used to compact flat surfaces without losing their structural coherence. After printing, the ceramic structures were coated with a stretchable, biocompatible polymer to improve flexibility.

Mechanical Testing and Results
Mechanical tests, including static and cyclic compression, showed that the polymer-coated ceramic structures could flex and recover under stress, unlike uncoated samples, which tended to crack or break. Computer simulations supported these findings, indicating that the coated structures consistently exhibited greater toughness, particularly along axes where uncoated ceramics were more vulnerable.

According to the researchers, the folding geometry increased mechanical adaptability, while the polymer coating provided additional resilience to prevent sudden fracture.

Potential Applications and Sustainability Aspects
The combination of ceramics’ inherent properties with enhanced mechanical flexibility may make these structures suitable for applications where lightweight, impact-resistant, and durable materials are required. Potential fields of use include biomedical devices, robotics, aerospace components, and automotive design.

Additionally, the biocompatibility of the materials and the use of additive manufacturing processes, which can reduce material waste, align with broader sustainability objectives in material development. These factors may contribute to longer product lifecycles and more efficient resource use, supporting efforts towards greater circularity in design and manufacturing.

The research illustrates how structural design strategies such as origami-inspired folding can be applied to improve the mechanical performance of traditionally brittle materials like ceramics.

Source: University of Houston
Photo: University of Houston
