Stitched Wood Laminates Improve Strength And Expand Design Possibilities

Researchers at Graz University of Technology (TU Graz) have developed a technique that reinforces wood laminates using industrial sewing. By stitching layers of wood veneer with nylon thread, they significantly improve resistance to delamination. This opens up new opportunities for architects, product designers, and furniture makers.

Addressing A Known Weakness In Wood Laminates

Designers widely use wood laminates in lightweight applications such as skis, vehicle interiors, and furniture. However, the material performs poorly when forces act perpendicular to the grain or surface. Under these “peel loads”, layers can separate and cause failure.

The TU Graz team, led by Florian Feist, tackled this issue with targeted stitching. The seams reinforce only the areas where extra strength is needed. The concept is similar to reinforced concrete, where steel bars absorb tensile forces. In this case, the stitched threads take over that role inside the timber.

Tests show strong results. Stitched laminates withstand up to four times higher peel loads. They also absorb up to fourteen times more fracture energy than conventional laminates.

Reducing Reliance On Adhesives

This technique could reduce the need for synthetic adhesives and resins. Instead of bonding layers chemically, stitching connects them mechanically. This approach can support more circular and low-impact material systems.

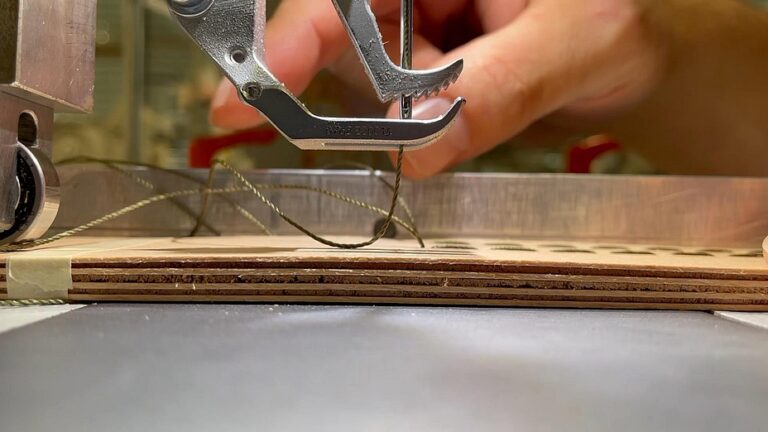

The process uses standard industrial sewing machines, which makes it easy to scale. Nylon proved to be the most effective thread, as it combines strength with flexibility. Special needle shapes push fibres aside instead of cutting through them, preserving the wood’s structure.

New Design Opportunities Across Disciplines

The method offers new design possibilities across several fields. Architects and engineers can use it to develop lightweight, foldable timber structures. Examples include transportable bridges or collapsible benches.

For product and furniture designers, stitching enables flexible joints and hybrid material connections. Designers can even combine wood with materials such as metal sheets.

The technique works best when applied locally. It targets areas with high stress instead of reinforcing entire surfaces. This makes it efficient and material-conscious.

Towards More Efficient Timber Applications

The method does not improve shear strength significantly. However, it delivers clear benefits in peel resistance and production speed. Stitching also removes curing times, which speeds up manufacturing.

As timber becomes more important in sustainable design, this innovation shows how traditional materials can evolve. It combines low weight, improved performance, and reduced material use in a single solution.

Source: TU Graz
Photo: W.E.I.Z.
