Researchers at the University of Stuttgart and Fraunhofer Institute have developed a bioinspired, weather-responsive adaptive shading system, called “Solar Gate”, and works without electrical energy. This system integrates advanced materials and design principles to reduce energy consumption while enhancing sustainability. It has potential applications in architecture, interior design, and product design, particularly for projects prioritizing energy efficiency and environmentally friendly materials.

Biobased Hygromorphic Materials
The shading system is based on biomimicry, drawing inspiration from natural processes such as the self-shaping mechanisms of pine cones. The core innovation lies in the use of biobased hygromorphic materials—materials that change shape in response to moisture. These materials are primarily cellulose-based, allowing the shading elements to expand or contract passively without the need for energy input. This approach reduces energy consumption and aligns with sustainability goals by minimizing mechanical complexity.

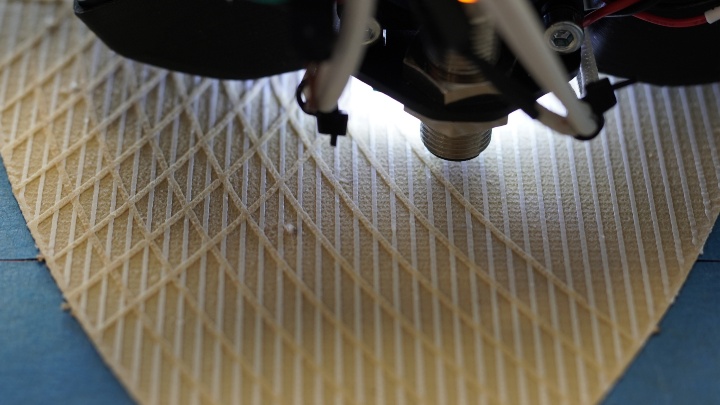

Advanced 4D Printing Technology
The development process employs advanced 4D printing techniques. Unlike conventional 3D printing, 4D printing incorporates time as a variable, enabling printed materials to transform in response to environmental conditions. By programming the cellulose-based material to react predictably to humidity, the shading system can adapt autonomously to changes in weather. The combination of biobased components with synthetic reinforcements ensures durability and flexibility, while maintaining biodegradability.

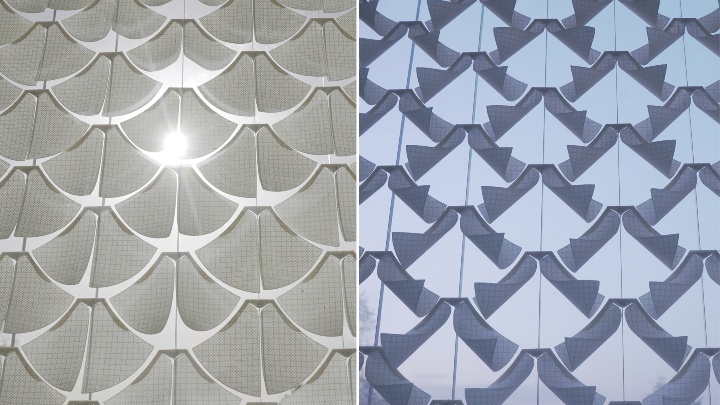

Architectural and Design Integration
The system has been designed to integrate seamlessly into building façades, providing functional shading while contributing to aesthetic appeal. The patterned elements can be customized for various architectural styles and scales, offering design flexibility for architects. Additionally, the passive nature of the system reduces reliance on traditional energy-intensive climate control solutions.

For interior designers and product developers, the material’s dynamic properties could inspire applications in areas such as furniture, lighting, or smart home accessories. Its ability to respond to environmental changes offers new possibilities for designing interactive and sustainable products.

Focus on Sustainability
The materials used in the shading system are renewable and recyclable, contributing to a circular lifecycle. This aligns with growing demand for environmentally responsible design solutions. By reducing energy consumption and enabling end-of-life recyclability, the system addresses key challenges in sustainable design.

Potential Applications
While primarily intended for architectural use, the shading system’s material properties and manufacturing techniques could be applied across multiple disciplines. Possible applications include outdoor shading structures for landscape architecture, responsive packaging solutions, and portable shelters. The versatility of the system’s biobased materials allows for adaptation to various design contexts.

Source: University of Stuttgart
