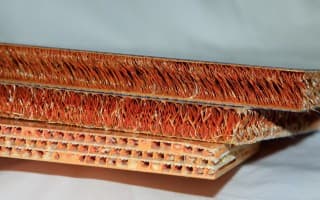

Bola TriGlass

Category
Code
GLA203
Country
Netherlands

Request Information

Please sign in first or register for free to contact Bola Triglass.

- story by MaterialDistrict

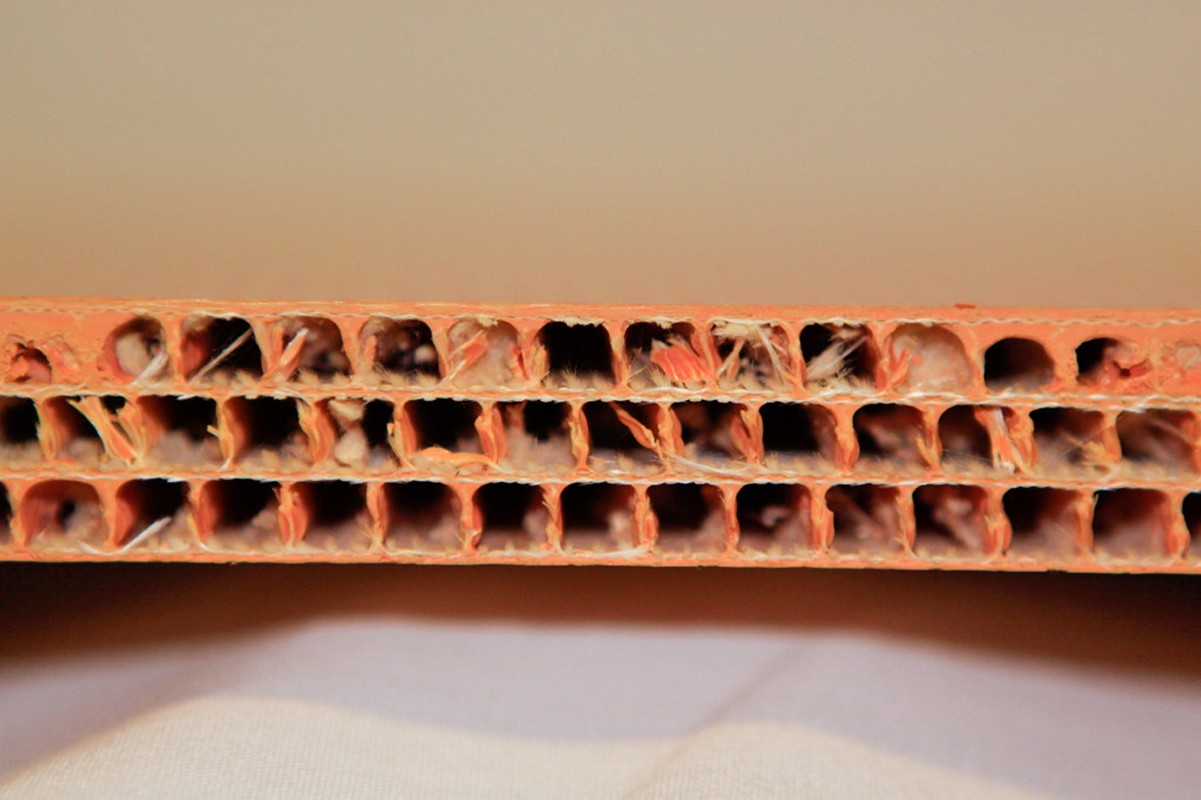

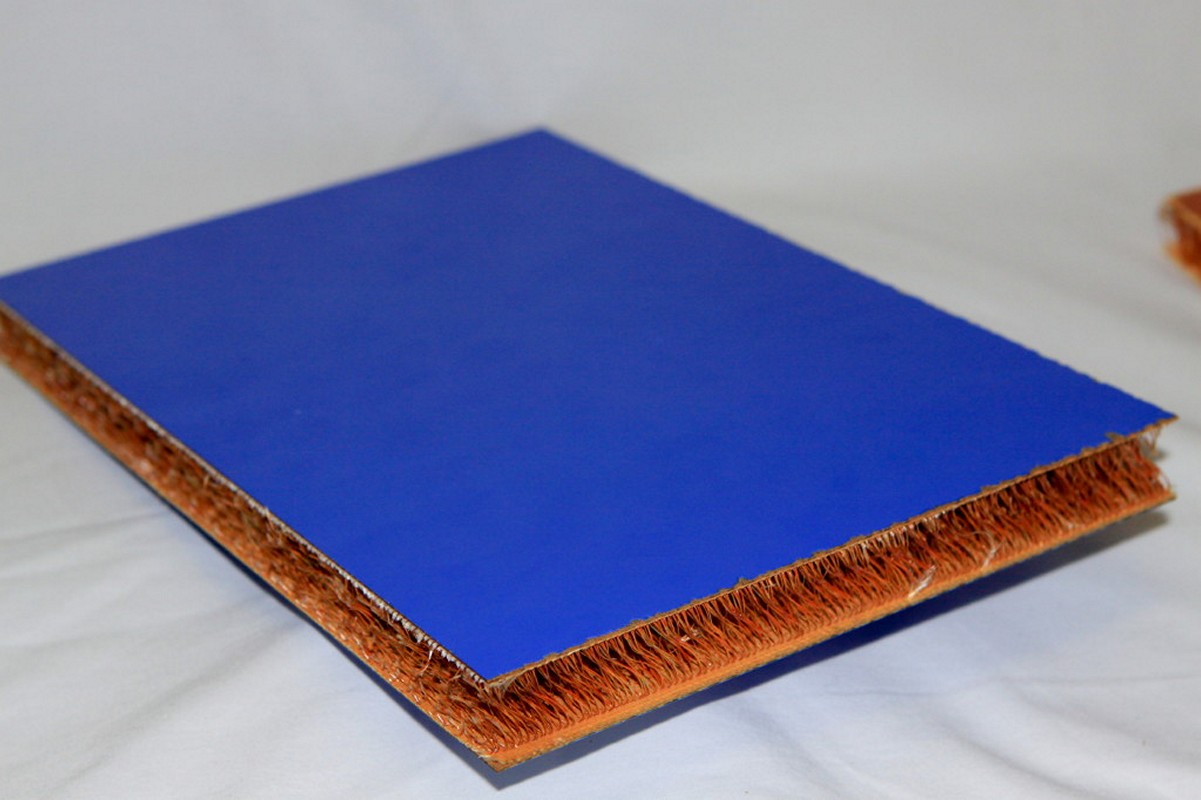

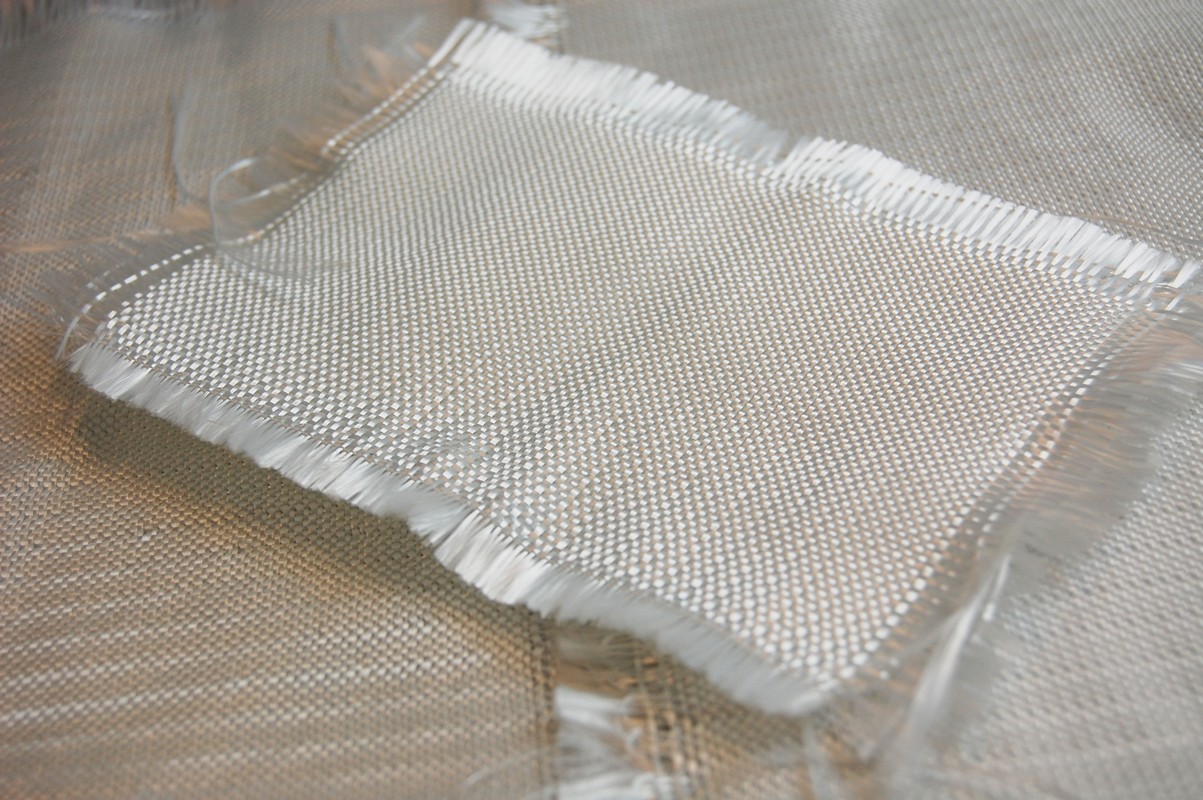

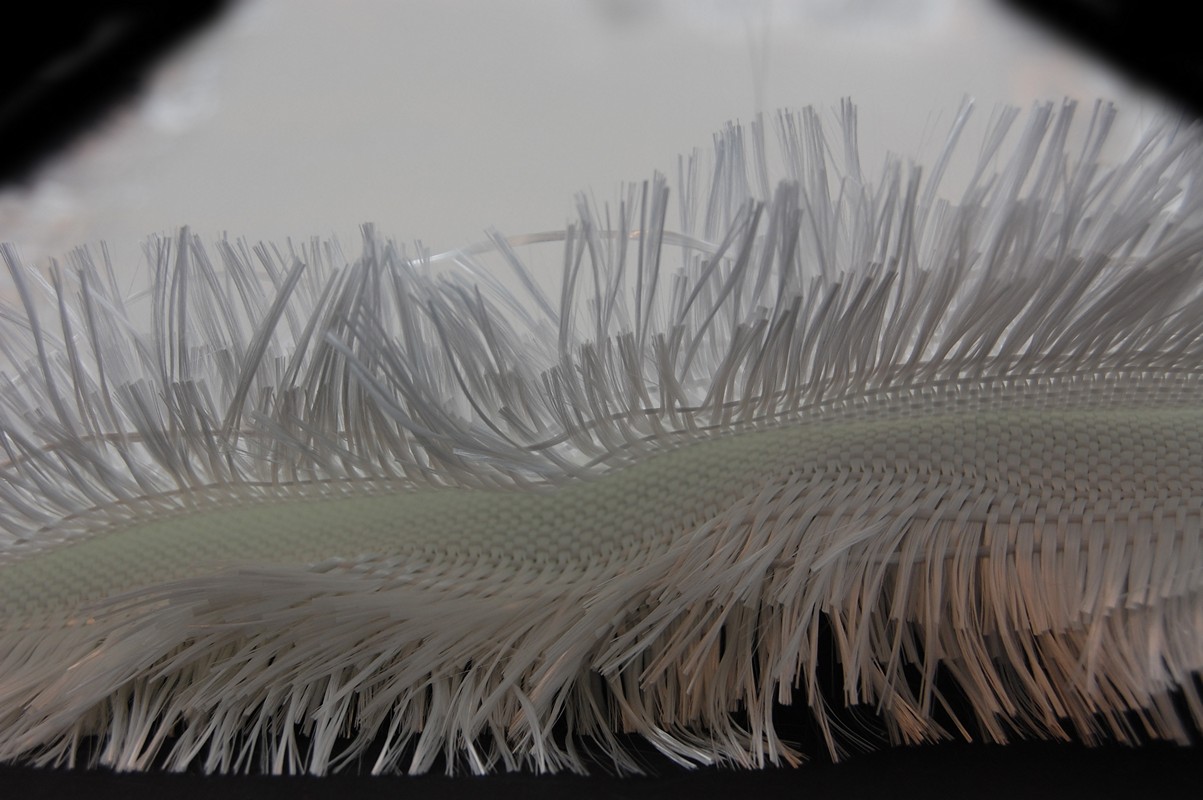

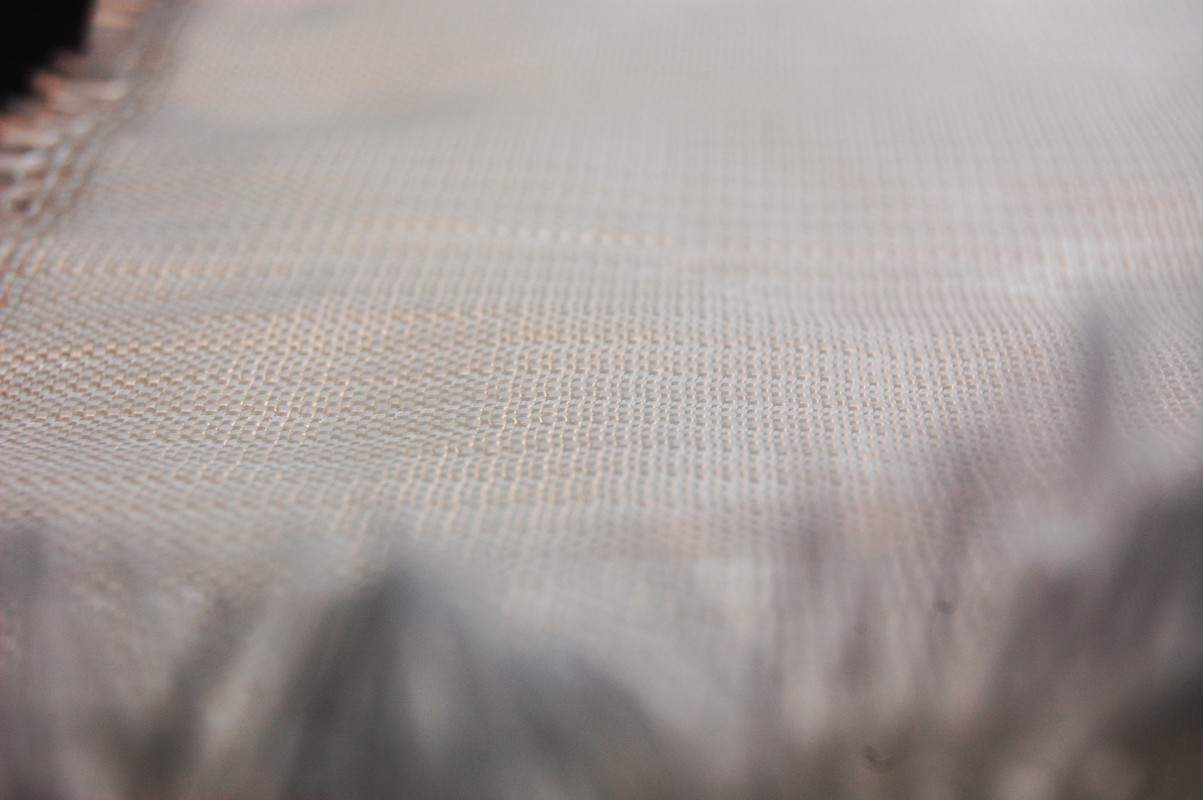

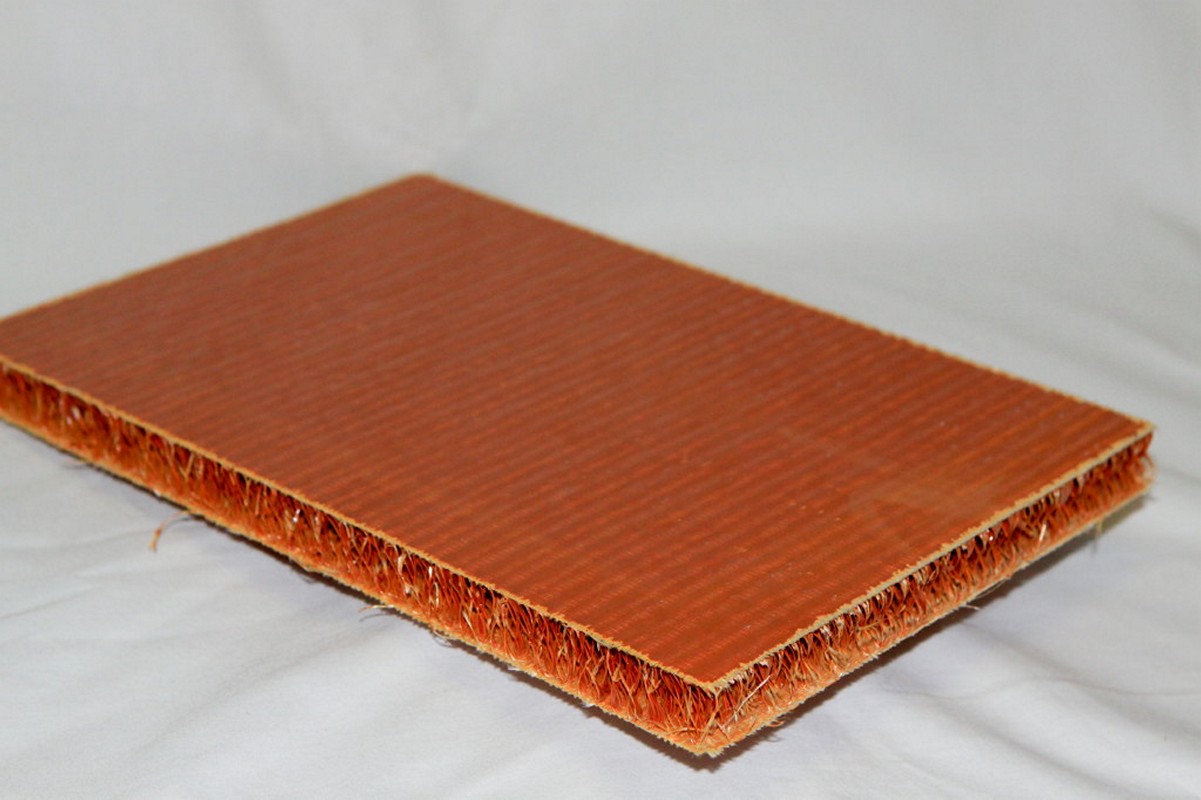

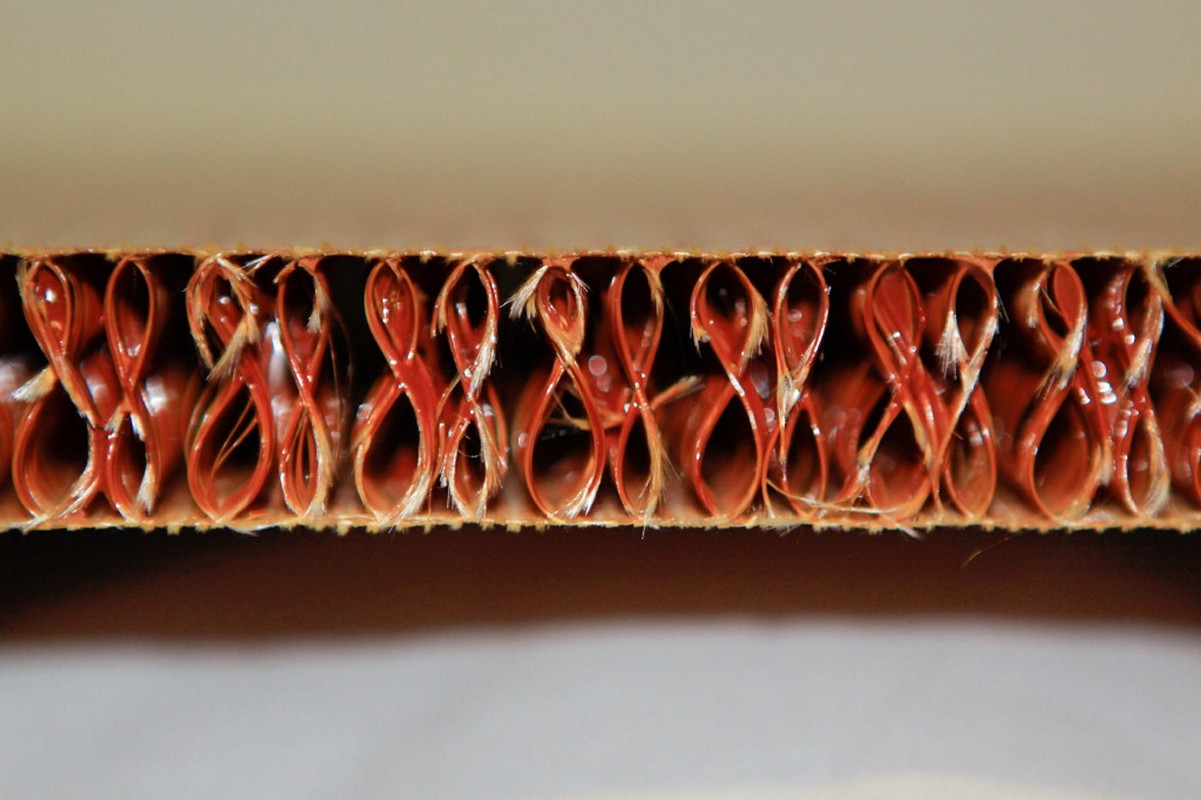

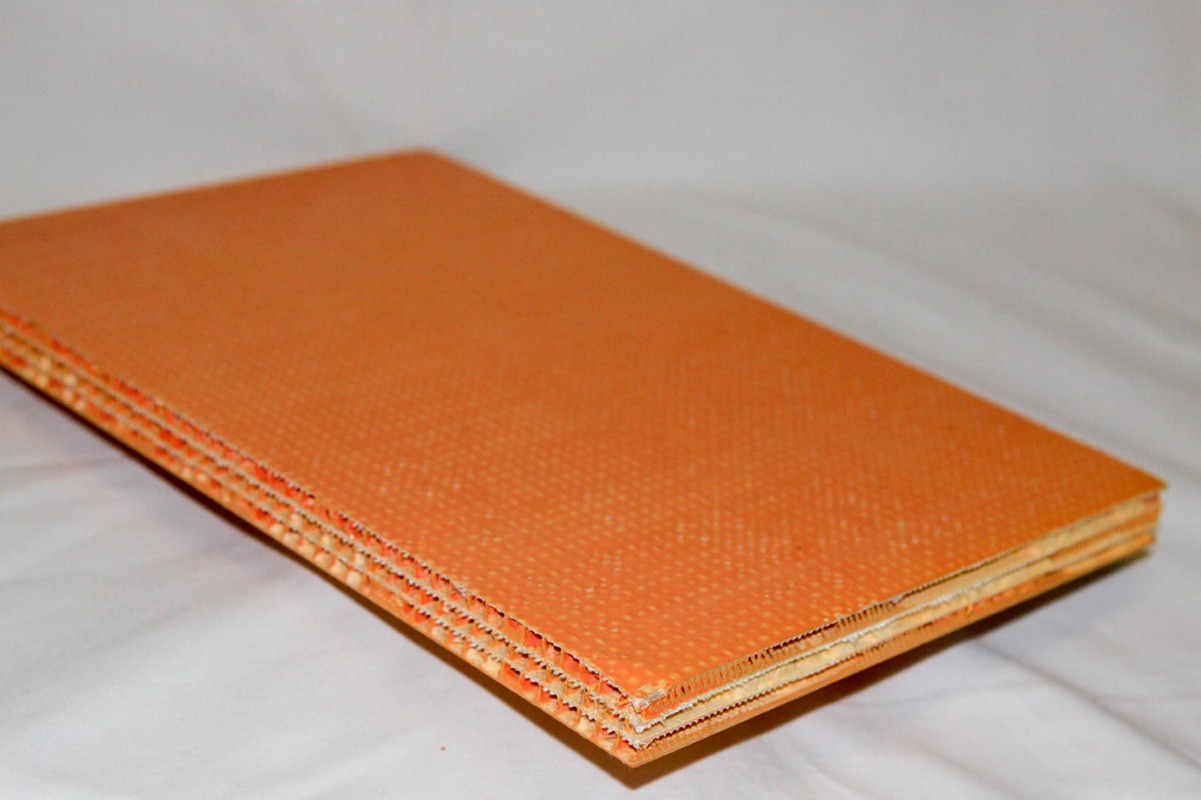

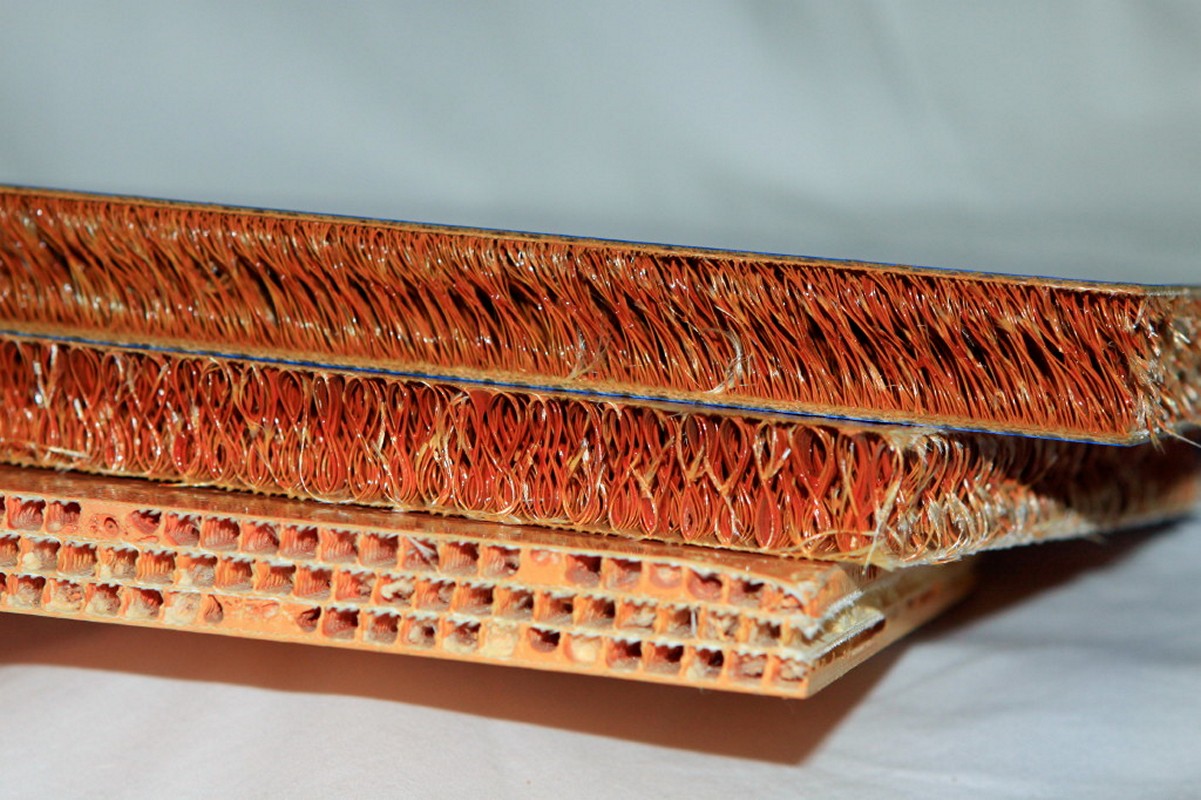

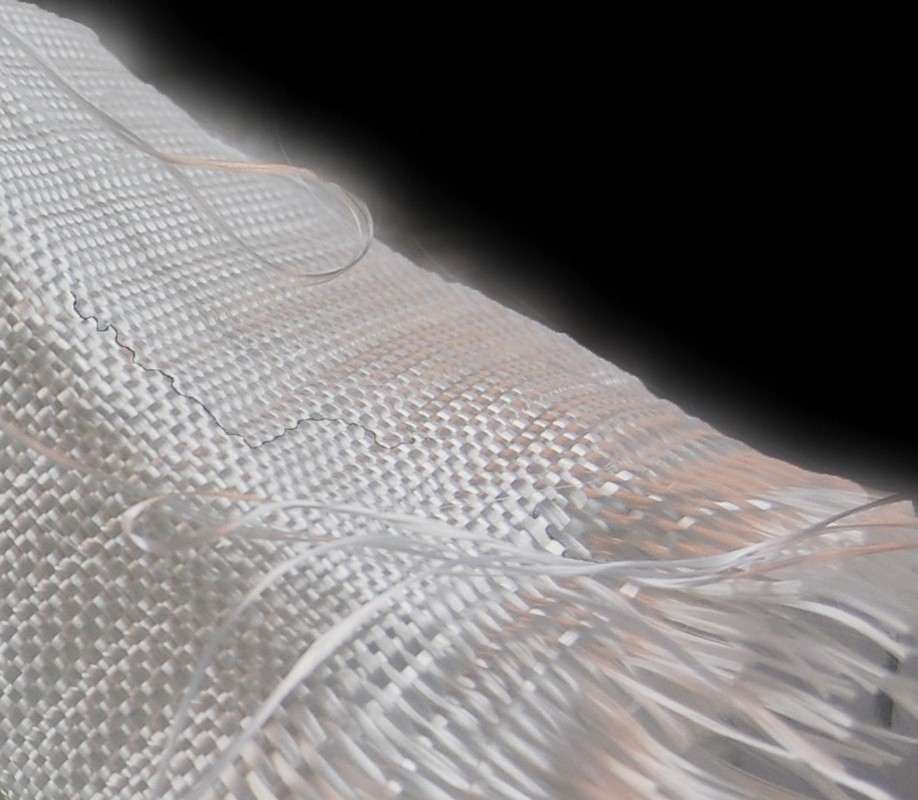

Bola TriGlass is an integrally woven sandwich fabric. It is woven in a revolutionary three-dimensional (3D) weaving process. It consist of two layers of 100% E-glass fabrics separated by interwoven vertical distance yarns, this forming an integral sandwich structure. The distance between the two fabric layers (top- and bottomlayer) can be varied and adapted to the desired thickness between 2 and 20 mm. The width of the fabric is 125 cm. Typical areal weight of the fabric lies around 1000 gr/sq.mtr. The fabrics are sold in 40 mtr rolls.

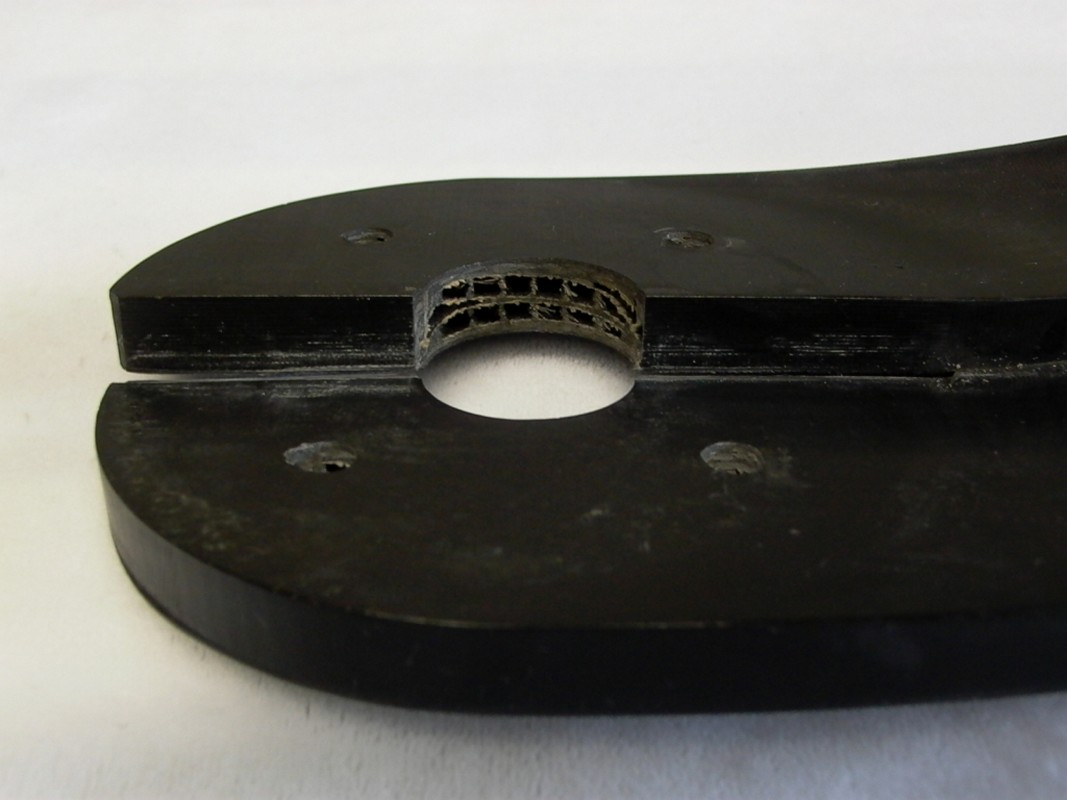

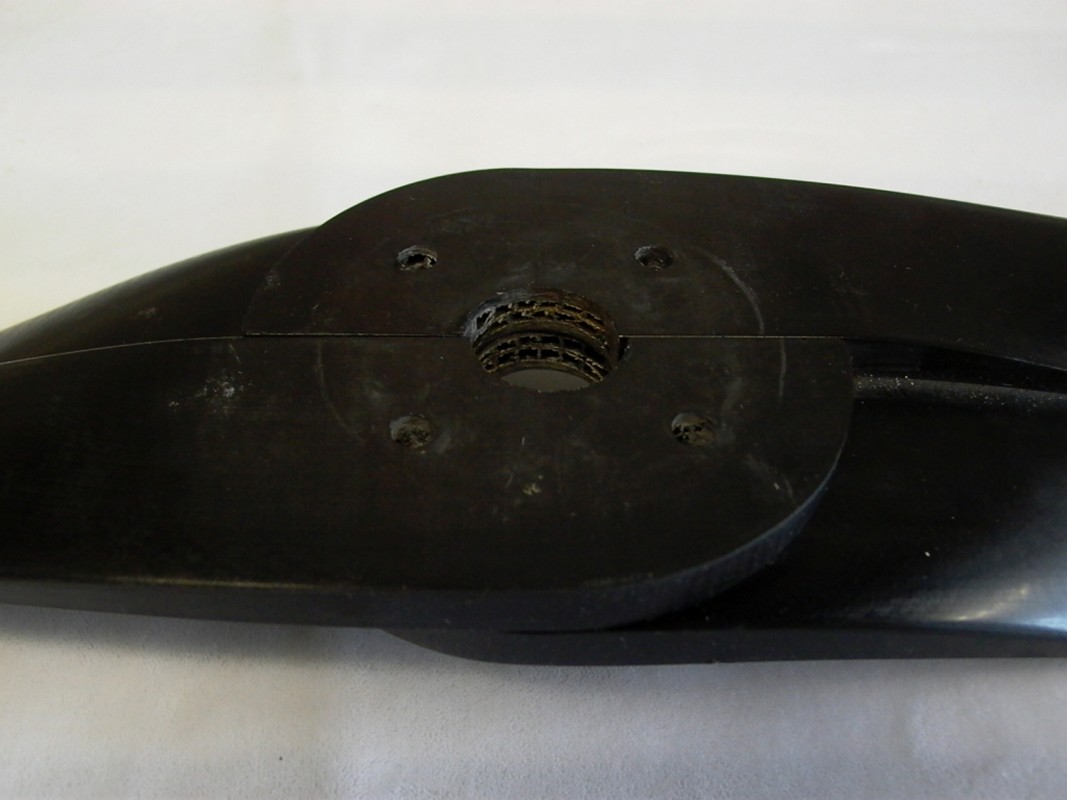

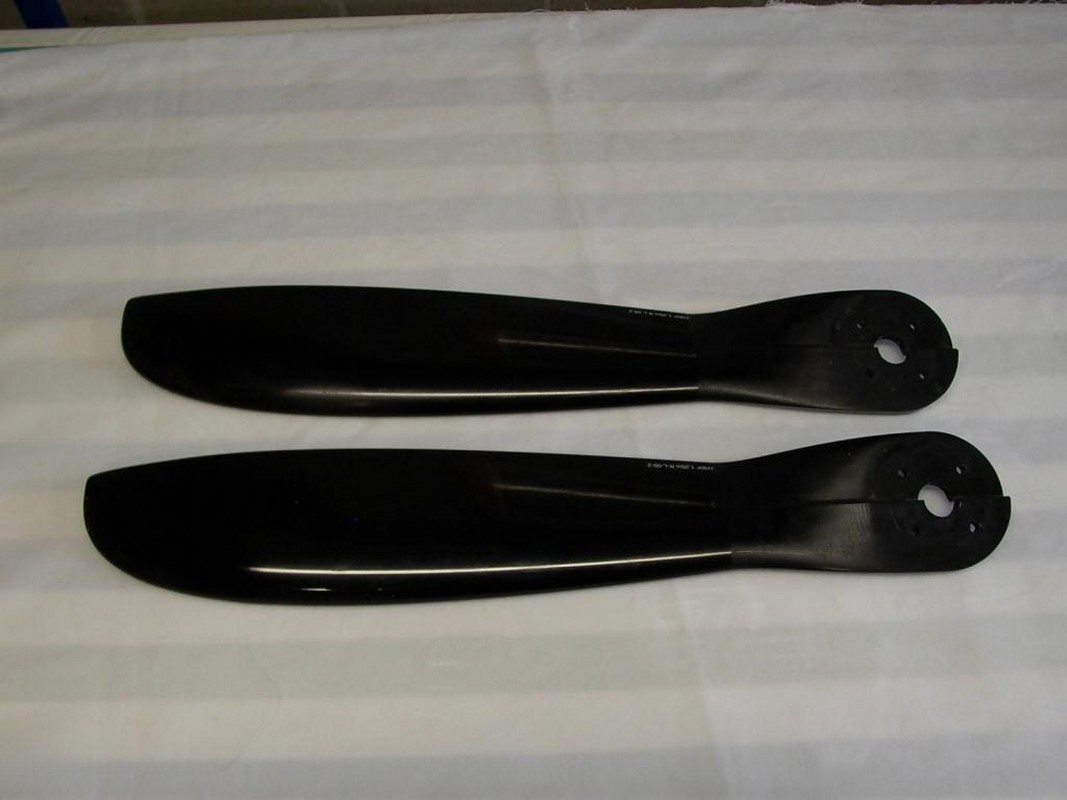

These 3D fabrics find their way in the fabric for applications in the Glass fibre Reinforced Plastics industry (GRP-business). They are used either as a core material or as a construction material. The fabrics offer you good drape-ability, good spring-back force and excellent impregnation. The yarns in the fabric have a silane sizing for excellent compatibility. A typical resin content in the laminate is 60% by weight.

Material Properties
