3D Printed Thermal Cloak Guides Heat Around Complex Objects
Researchers at the University of Illinois Urbana-Champaign have developed a three-dimensional thermal cloak that can conceal complex objects from infrared cameras while protecting them against extreme temperatures. Made from a hybrid structure of 3D printed aluminium and moulded rubber, the material system could support new approaches to thermal management in electronics, equipment and buildings.
Controlling Heat In Three Dimensions
Thermal cloaking does not simply block heat. Instead, it guides heat around an object so that the surrounding temperature field appears undisturbed. An infrared camera therefore detects no obvious thermal signature from the concealed object.
Previous experimental cloaks generally operated in two dimensions or only worked when heat travelled in a particular direction. The new device can manage heat coming from almost any direction, bringing the technology closer to a genuinely omnidirectional thermal cloak.
The research was conducted by Professor Shelly Zhang, postdoctoral researcher Weichen Li and graduate student Yibo Wang at the University of Illinois Urbana-Champaign, together with Professor Ole Sigmund at the Technical University of Denmark.
A Hybrid Aluminium-And-Rubber Lattice
At the centre of the design is an adjustable lattice whose geometry can be varied along three axes. By modifying the structure in different regions, the researchers can precisely control how heat is conducted through the material.

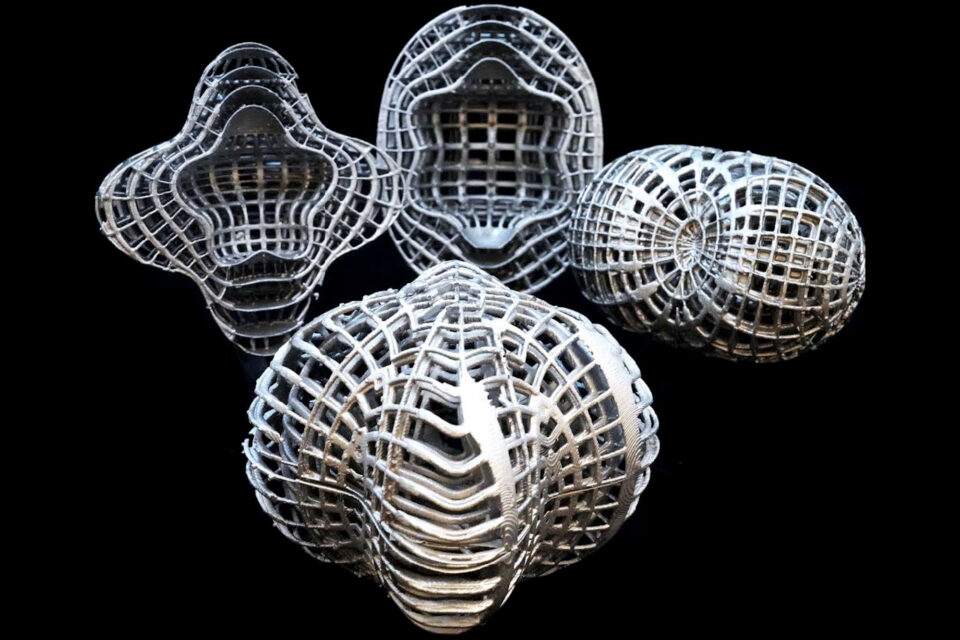

The physical prototype combines two materials with contrasting thermal properties. A precisely engineered aluminium lattice, produced using 3D printing, provides high thermal conductivity. Its cavities are filled through mould casting with a rubber-like material that has low thermal conductivity. Together, these components create the broad range of thermal behaviour needed to redirect heat around the protected space.
Laboratory tests placed the cloak between hot and cold zones. Infrared imaging showed that the external temperature field remained almost unchanged, as though the concealed object were absent. Meanwhile, the temperature inside the cloaked region stayed stable and was shielded from external extremes. The team also successfully tested the system with intricate, head-like geometries.
Potential For Adaptive Thermal Materials
The technology could eventually help designers manage heat around sensitive electronic components, microchips and equipment operating in harsh environments. Its combination of additive manufacturing, geometric optimisation and contrasting material properties also demonstrates how architected materials can deliver functions that cannot be achieved by one homogeneous substance.
Future research will focus on smart, multifunctional cloaks capable of managing objects that generate their own heat. Such systems could actively concentrate, distribute or redirect heat according to changing conditions, creating opportunities for responsive thermal protection and more efficient temperature control.
Source & image: University of Illinois Urbana-Champaign
