Ecopan

Category
Code
WOO131
Country
San Marino
Brand
Tonelli S.A.

Request Information

Please sign in first or register for free to contact Tonelli S.A..

- story by MaterialDistrict

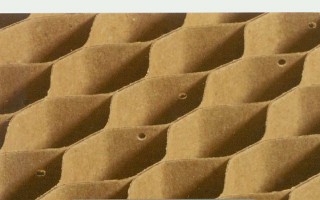

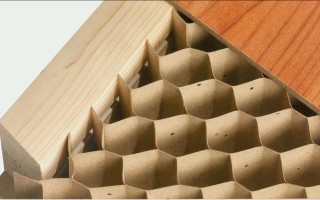

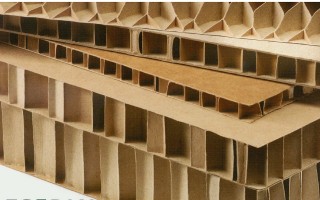

Paper honeycomb sandwich made by gluing paper into an eight hexagonal shape. The thickness of the core is from 10 mm up to 120 mm and has die-cut holes for ventilation. It can be applied in structural applications such as the automotive and building industry as well as panelling and shop-fitting. The material can easily be cut, sawn, die-cut, folded and glued. Additionally films and coatings can be applied on the facing to create a water or oil barrier or to make the surface more abrasive. On request the material can be laminated with decorative or coloured paper or even with a personnel design. The compression resistance is up to 6 kg/cm2. For automated processes continuous honeycomb is produced, with a maximum expanded width of 1850 mm. For manual assembly individual pieces up to 1300 mm expanded width are possible.
Paper gram:
120, 140, 180, 200, 220, 270 g/m
Paper quality:
Testliner, Kraftliner, other’s on demand
Thickness:
from 10 mm up to 120 mm
Width:
Up to 1850 mm expanded width
Density:
from 10 kg/m3 up to 45 kg/m3
