3D Printed Concrete Bridge Explores Material-Efficient Construction

Concrete is one of the world’s most widely used construction materials and a major source of carbon emissions. Researchers at the Massachusetts Institute of Technology (MIT) have developed a computational design framework that improves the material efficiency of 3D printed concrete structures. The framework incorporates the practical limitations of current 3D printing hardware into the design process. As a result, it generates structures that printers can fabricate without extensive manual redesign.

Designing Around Manufacturing Constraints

Engineers commonly use topology optimisation to create structures that use as little material as possible while maintaining strength. However, today’s large-scale concrete printers cannot produce many of these complex geometries. Limits such as nozzle size, turning radius and the need for a continuous printing path often force engineers to modify designs before fabrication.

The MIT team integrated these manufacturing constraints directly into the optimisation process. Instead of creating an ideal design first and adapting it later, the software generates printable designs from the start.

The researchers identified the main fabrication constraints during a collaboration with Autodesk Research through its Research Residency Program. They translated these constraints into mathematical rules within the optimisation framework. The software now generates printable designs in about two minutes on a standard laptop. Designers can also update a model within minutes if project dimensions change shortly before printing.

Testing A 3D Printed Concrete Bridge

To validate the framework, the team designed and printed a 2.3-metre-long concrete bridge using commercially available mortar. The printer completed the bridge in around 30 minutes without conventional formwork. It deposited concrete only where the structure required it.

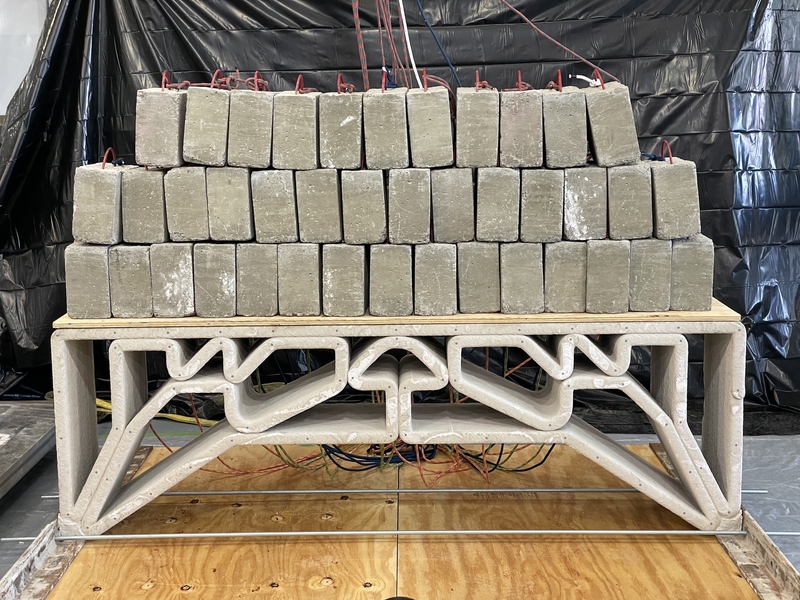

The bridge weighed approximately 410 kg. During load testing, it supported more than 900 kg of evenly distributed weight without measurable deflection. The test results closely matched the team’s simulations.

The researchers designed the bridge so every structural element remained in compression. This approach takes advantage of concrete’s high compressive strength while avoiding tensile forces.

Printer Capabilities Influence Material Use

The study shows that current printing hardware strongly influences the material efficiency of 3D printed concrete structures.

The researchers used their optimisation framework to evaluate how individual printer characteristics affect material consumption. Their analysis identified bead width as the most influential factor. The printer used a 4 cm-wide concrete bead to produce the bridge. According to the simulations, reducing the bead width to 1 cm could lower material use by up to 76% while maintaining structural safety.

These results provide guidance for future printer development. Higher print resolution could reduce concrete consumption and lower the embodied carbon of 3D printed structures.

The team is now adapting the framework for reinforced concrete. Integrating reinforcement into automated concrete printing remains technically challenging. However, the researchers consider it an important step towards wider use in construction.

Source & photos: MIT
