Recyclable 3D Printing Resin Enables Closed-Loop Manufacturing

Researchers at Heidelberg University have developed a polymer for more circular 3D printing. The new material offers the strength and precision needed for detailed printed objects. Yet manufacturers can also break it down and reuse its parts.

Reducing Waste From 3D Printing

Light-based 3D printing methods use liquid resins that harden when exposed to light. Digital light processing is one example. It can create small, complex structures with details at micrometre scale.

Designers and manufacturers use these methods for medical devices, soft robots, precision parts and product prototypes. However, the resins often contain thermoset polymers. During printing, their building blocks form strong and permanent networks. These bonds make the finished objects stable, but also very hard to recycle. As 3D printing grows, these resins could create a constant stream of waste.

A Chemical Key Breaks Down The Polymer

Professor Eva Blasco led the research team at Heidelberg University’s Institute for Molecular Systems Engineering and Advanced Materials. The team created a ‘metastable’ polymer that stays strong during use. A specific chemical signal can break it down when the product reaches the end of its life.

The polymer chain contains one planned breaking point. The researchers compare this point to a lock. A chemical ‘key’ opens it and starts a chain reaction. The entire polymer then falls apart into its original molecular parts within seconds. This process takes place at room temperature and leaves no residue.

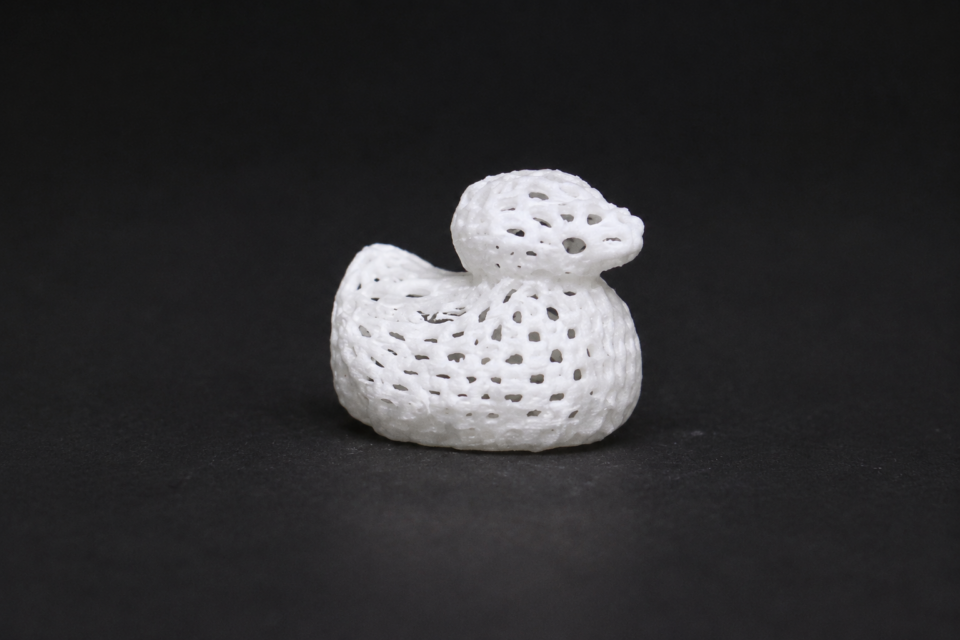

Importantly, the breaking point does not reduce print quality or strength. During tests, the team printed several complex 3D structures. These objects included fine details at micrometre scale.

Recycled Material Maintains Its Quality

The researchers collected the recovered building blocks and used them to make a new polymer. Tests confirmed that it had the same chemical structure as the original material. It also offered the same properties during a second printing cycle.

The development could help designers create precision polymer parts without turning them into permanent waste. Possible uses include medical products, responsive structures and small product components. Such objects are often difficult to recycle with standard mechanical methods.

Further research must show whether the process can work at an industrial scale. Still, the project shows that a polymer can combine strength, print quality and recyclability. It could therefore support closed-loop production in high-resolution additive manufacturing.

The team carried out the research within the ‘3D Matter Made to Order’ Excellence Cluster. Heidelberg University and the Karlsruhe Institute of Technology jointly run this research programme. Advanced Materials published the findings.

Source & image: Heidelberg University / Informationsdienst Wissenschaft (idw)
